Description

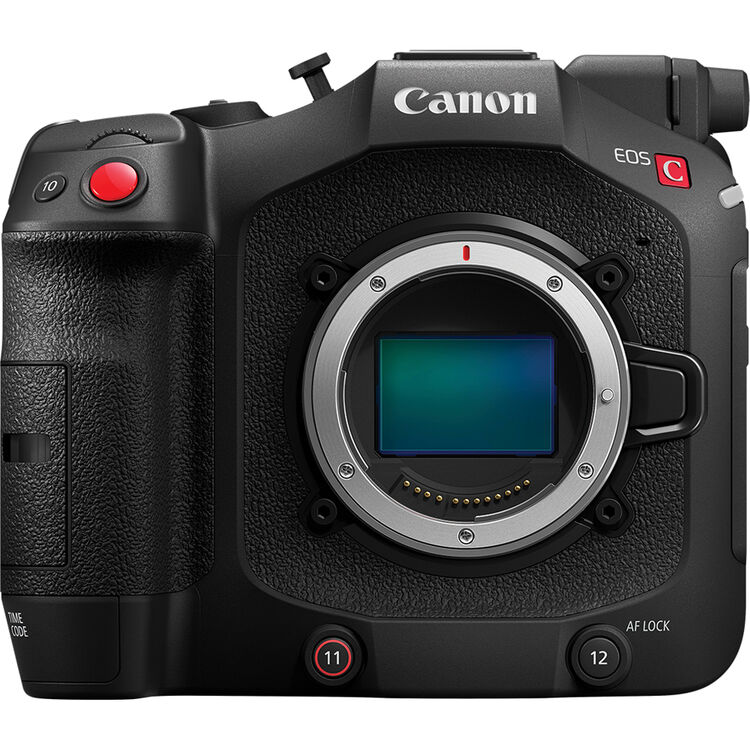

The Canon EOS C80 is a compact, full-frame 6K cinema camera featuring a stacked BSI sensor, native RF mount, and triple base ISO (800/3200/12800). It offers 16 stops of dynamic range, internal 12-bit Cinema RAW Light recording, and advanced Dual Pixel CMOS AF II. Positioned between the C70 and C300 Mark III, it brings 6K capabilities to a compact, gimbal-friendly, 12G-SDI equipped body.
Sensor & Image: 6K Full-Frame Backside Illuminated (BSI) Stacked CMOS sensor providing 16+ stops of dynamic range.
ISO & Low Light: Triple Base ISO (800/3200/12800) for superior noise management.
Lens Mount: Native RF mount with support for PL/EF adapters and Canon Sumire lenses.
Recording Formats: 6K Cinema RAW Light (12-bit) internally, XF-AVC, XF-AVC S, and XF-HEVC S.
Autofocus: Dual Pixel CMOS AF II with EOS iTR AF X for face, eye, and head tracking.
Connectivity & Media: 12G-SDI output, Timecode, Genlock, Ethernet (XC Protocol), and dual SD UHS-II card slots.
Form Factor: Compact design similar to C70, weighing ~1310g, with active cooling and built-in motorized ND filters (2/4/6/8/10 stops).
Specifications
| Lens Mount | Canon RF |
| Lens Communication | Yes: Cooke /i |
| Image Sensor | Full-Frame BSI Stacked CMOS |
| Effective Sensor Resolution | Effective: 19.05 Megapixel (6008 x 3170) Actual: 26.67 Megapixel (6202 x 4300) |
| Image Stabilization | Digital, 5-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with 6-Stop (1/64), 2-Stop (1/4), 4-Stop (1/16), 8-Stop (1/256), 10-Stop (1/1024) ND Filters |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/2000 to 1 Second |
| Shutter Angle | 11.25 to 360° |
| ISO/Gain Sensitivity | Native: 100 to 102,400 |
| Advertised Dynamic Range | 16 Stops |
| White Balance | Range: 2000 to 15,000K Presets: Set B, Tungsten, Set A, Daylight, AWB |
| Focus Mode | Continuous-Servo AF, One-Shot AF, Manual Focus, Focus Lock AF Area Mode |
| Internal Recording | Cinema RAW Light 12-Bit 6000 x 3164 at 24.00/25/29.97/23.98 fps (553 to 639 Mb/s) 4368 x 2304 at 23.98/50/24.00/25/29.97/59.94 fps (293 to 678 Mb/s) XF-AVC S Intra 4:2:2 8/10-Bit 4096 x 2160 at 50/120/59.94 fps (150 to 600 Mb/s) 3840 x 2160 at 23.98/120/50/24.00/25/29.97/59.94 fps (150 to 500 Mb/s) 2048 x 1080 at 23.98/120/180/50/24.00/25/29.97/59.94 fps (35 to 300 Mb/s) 1920 x 1080 at 23.98/120/180/50/24.00/25/29.97/59.94 fps (35 to 300 Mb/s) XF-AVC S Long GOP 4:2:0 8-Bit 4096 x 2160 at 50/120/59.94 fps (150 Mb/s) 3840 x 2160 at 23.98/120/24.00/25/29.97 fps (100 Mb/s) 2048 x 1080 at 23.98/180/50/24.00/25/29.97/59.94 fps (35 Mb/s) 1920 x 1080 at 23.98/180/50/24.00/25/29.97/59.94 fps (35 Mb/s) XF-HEVC S Long GOP 4:2:2 10-Bit 4096 x 2160 at 50/120/59.94 fps (225 Mb/s) 3840 x 2160 at 23.98/120/24.00/25/29.97 fps (135 Mb/s) 2048 x 1080 at 23.98/180/50/24.00/25/29.97/59.94/30.00 fps (50 Mb/s) 1920 x 1080 at 23.98/180/50/24.00/25/29.97/59.94/30.00 fps (50 Mb/s) XF-HEVC S Long GOP 4:2:0 10-Bit 4096 x 2160 at 50/120/59.94 fps (150 Mb/s) 3840 x 2160 at 23.98/120/24.00/25/29.97 fps (100 Mb/s) 2048 x 1080 at 23.98/180/50/24.00/25/29.97/59.94 fps (35 Mb/s) 1920 x 1080 at 23.98/180/24.00/25/29.97/59.94 fps (35 Mb/s) XF-HEVC S Intra 4:2:0 8-Bit 2048 x 1080 at 24.00/25/29.97/50/59.94/23.98 fps (9 to 16 Mb/s) 1920 x 1080 at 23.98/50/24.00/25/29.97/59.94/60.00 fps (9 to 16 Mb/s) 1280 x 720 at 23.98/50/24.00/25/29.97/59.94 fps (6 Mb/s) *Sensor Crops During RecordingXF-HEVC S Long GOP 4:2:0 10-Bit 2048 x 1080 at 24.00/25/29.97/50/59.94/60.00/23.98 fps (9 to 16 Mb/s) 1920 x 1080 at 23.98/50/24.00/25/29.97/59.94 fps (9 to 16 Mb/s) XF-HEVC S Long GOP 4:2:0 8-Bit 1280 x 720 at 24.00/25/50/59.94/23.98 fps6 Mb/s) |
| Video Output | via SDI/BNC / USB / HDMI 4096 x 2160 |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | Canon Log 2, Canon Log 3, Rec2020, HDR-HLG, Rec709 |
| Built-In Microphone | Stereo |
| Audio Recording | Cinema RAW Light: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S, XF-HEVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S, XF-HEVC S: 2-Channel, 16-Bit at 48 kHz via AAC Audio |
| IP Streaming | H.264, RTSP, UDP, RTP, SRT, MPEG2 1920 x 1080 at 50p, 59.94p, 59.94i, 50i (4.0 to 9.0 Mb/s) |
| Media/Memory Card Slot | Slot 1: SD/SDHC/SDXC Slot 2: SD/SDHC/SDXC |
| Internal Storage | No |
| Video I/O | 1x BNC (12G-SDI) Output 1x HDMI Output |
| Audio I/O | 2x Mini XLR Input 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body1x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x Barrel (23.7 to 25VDC) Input |
| Other I/O | 1x RJ45 (XC) Control 1x USB-C Monitor 1x BNC (Timecode) (Shared with Video Output) 1x 2.5 mm Sub-Mini (LANC) Control |
| Wireless | Wi-Fi 5 (802.11ac) |
| Mobile App Compatible | Yes: iOS Only App Name: Remote Camera Control App Functionality: View Live Feed, Remote Control, Adjust Settings |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | Primary Monitor: Included External 3.5″ Touchscreen LCD |
| Resolution | Primary Monitor: 1280 x 720 |
| Battery | Canon BP-AN Series |
| Power Consumption | ?19.6 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 85% Humidity |
| Storage Conditions | 23 to 113°F / -5 to 45°C up to 60% Humidity |
| Shoe Mount | 1x Intelligent Hot Shoe |
| Tripod Mount | 1x 3/8″-16 Female 2x 1/4″-20 Female |
| Netflix Approved | Yes |
| Dimensions (W x H x D) | 6.3 x 5.4 x 4.6″ / 160 x 138 x 116 mm 10.9 x 6.8 x 6.3″ / 276 x 173 x 160 mm (With Included Battery, Handle, Mic Holder) |
| Weight | 2.87 lb / 1.30 kg (Body Only) 3.406 lb / 1.545 kg (With Handle, Battery) |
Package includes
1 x Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)
1 x Canon BP-A30N Battery Pack
1 x Handle Unit
1 x Canon CA-CP300B Compact Power Adapter
1 x Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
1 x Microphone Holder
1 x SS-1200 Shoulder Strap
1 x Tape Measure Hook
1 x Grip Belt
