Description

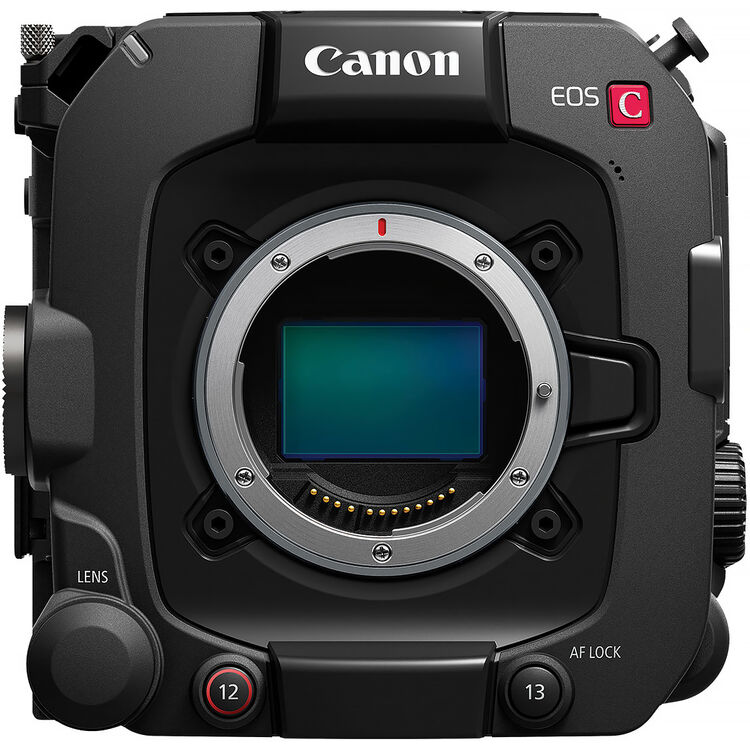

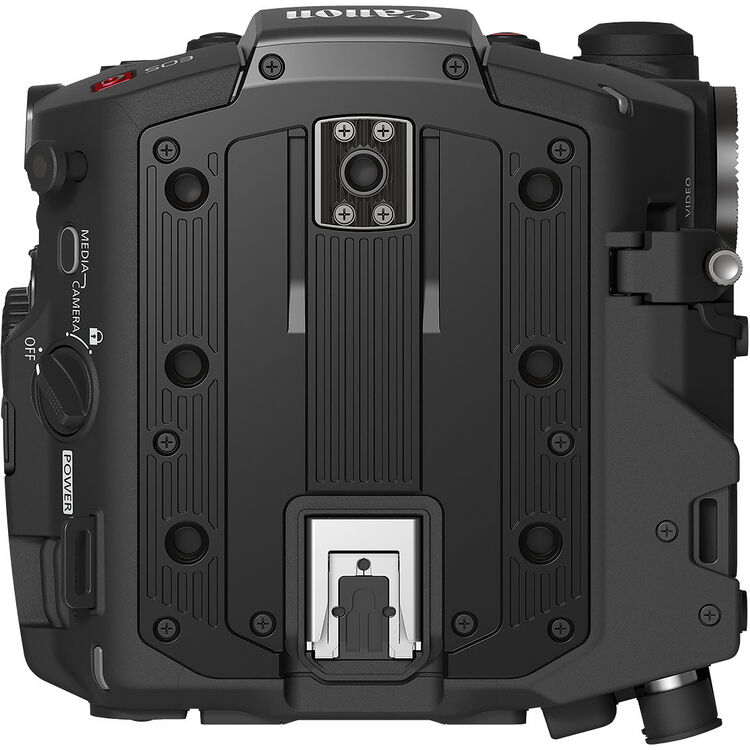

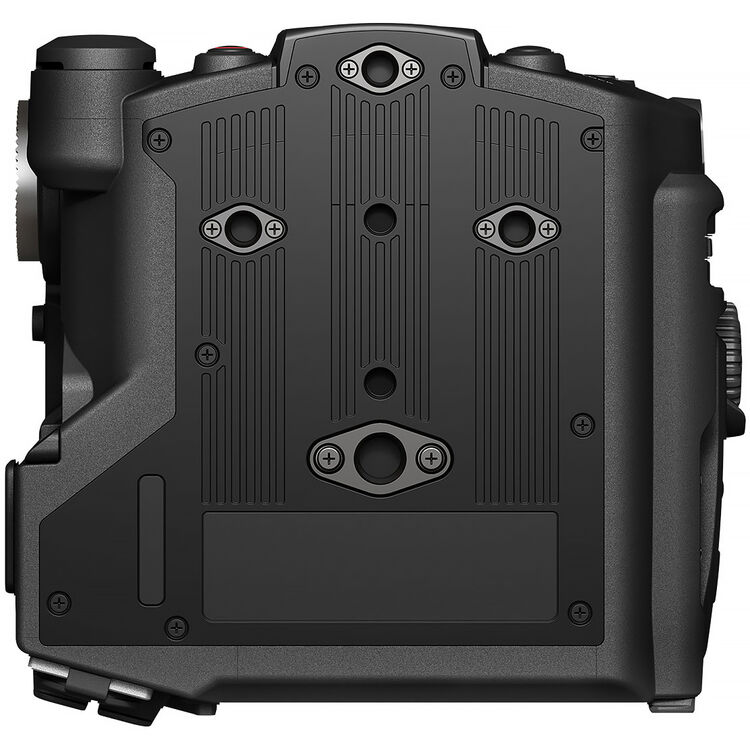

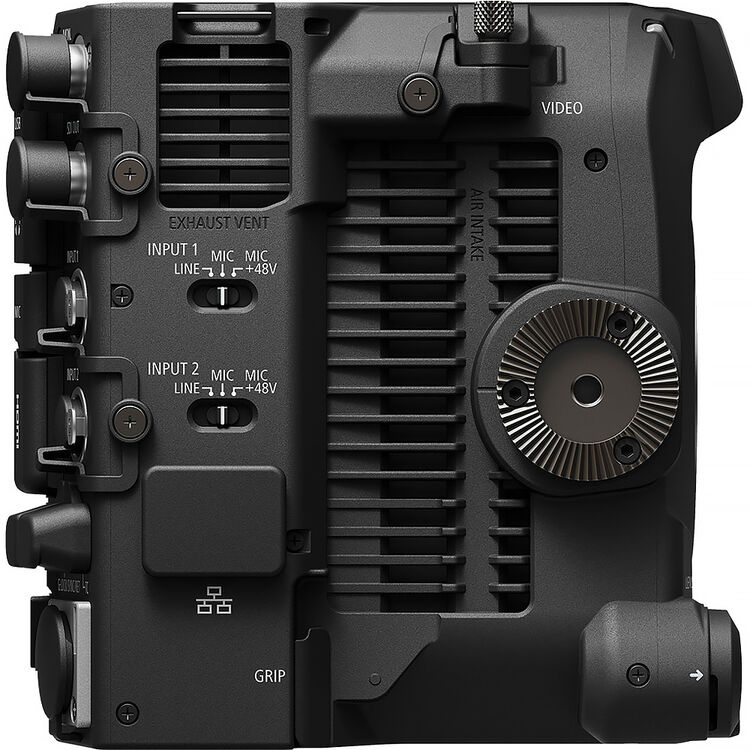

The Canon EOS C400 6K Full-Frame Digital Cinema Camera (RF mount) is a versatile, compact camera designed for high-end cinema, broadcasting, and virtual production. Key features include a 6K BSI CMOS sensor with 16 stops of dynamic range, triple-base ISO (800/3200/12800), internal 12-bit Cinema RAW Light, and advanced Dual Pixel CMOS AF II with AI tracking.
Sensor & Image: 6K Back-Illuminated (BSI) Full-Frame CMOS sensor with organic color reproduction, providing 16 stops of dynamic range.
Triple Base ISO: Specialized low-noise performance at 800, 3200, and 12,800 ISO, allowing for superior low-light capability.
Lens Mount & Stability: Native RF mount (adaptable to PL/EF) with 5-axis image stabilization (combining electronic and optical).
Autofocus: Dual Pixel CMOS AF II with EOS iTR AF X for precise eye, head, body, and animal tracking.
Recording Formats: Internal recording of Cinema RAW Light (6K 60P) and 4K 4:2:2 10-bit formats like XF-AVC, XF-HEVC S, and XF-AVC S.
Frame Rates: Up to 6K 60p or 4K 120p.
Workflow & I/O: Built-in 12G-SDI, HDMI, dual-mini XLRs, timecode, genlock, ethernet (for IP control/streaming), and Wi-Fi.
Media & Design: Dual slots (CFexpress Type B and SD UHS-II). Features active cooling and a compact, lightweight body suitable for gimbal/drone use.
Specifications
| Lens Mount | Canon RF |
| Lens Communication | Yes: Cooke /i |
| Image Sensor | Full-Frame BSI Stacked CMOS |
| Effective Sensor Resolution | Effective: 19.05 Megapixel (6008 x 3170) Actual: 26.67 Megapixel (6202 x 4300) |
| Image Stabilization | Digital, 5-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with 6-Stop (1/64), 2-Stop (1/4), 4-Stop (1/16), 8-Stop (1/256), 10-Stop (1/1024) ND Filters |
| Capture Type | Stills & Video |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/2000 to 1 Second |
| Shutter Angle | 11.25 to 360° |
| ISO/Gain Sensitivity | Native: 100 to 102,400 |
| Advertised Dynamic Range | 16 Stops |
| White Balance | Range: 2000 to 15,000K Presets: Set B, Tungsten, Set A, Daylight, AWB |
| Focus Mode | Continuous-Servo AF, One-Shot AF, Manual Focus |
| Internal Recording | Cinema RAW Light 12-Bit 6000 x 3164 up to 60.00 fps (552 to 2130 Mb/s) 4368 x 2304 up to 100 fps (293 to 916 Mb/s) 4096 x 2160 up to 120 fps (258 to 993 Mb/s) 2184 x 1152 up to 180 fps (74 to 574 Mb/s) XF-AVC Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps (240 to 1200 Mb/s) 3840 x 2160 up to 120 fps (240 to 1200 Mb/s) 2048 x 2160 up to 180 fps (120 to 300 Mb/s)1920 x 1080 up to 180 fps (120 to 300 Mb/s) XF-AVC Long GOP 4:2:2 10-Bit4096 x 2160 up to 120 fps (150 to 250 Mb/s) 3840 x 2160 up to 120 fps (150 to 250 Mb/s) 2048 x 1080 up to 180 fps (25 to 50 Mb/s) 1920 x 1080 up to 180 fps (25 to 50 Mb/s) XF-AVC S Intra 4:2:2 10-Bit 4096 x 2160 up to 120 fps (240 to 1200 Mb/s) 3840 x 2160 up to 120 fps (240 to 1200 Mb/s) 2048 x 1080 up to 180 fps (120 to 300 Mb/s) 1920 x 1080 up to 180 fps (120 to 300 Mb/s) XF-AVC S Long GOP 4:2:2 10-Bit 4096 x 2160 up to 120 fps (130 to 250 Mb/s) 3840 x 2160 up to 120 fps (130 to 250 Mb/s) 2048 x 1080 up to 180 fps (50 Mb/s) 1920 x 1080 up to 180 fps (50 Mb/s) XF-AVC S Long GOP 4:2:0 8-Bit 4096 x 2160 up to 180 fps (100 to 150 Mb/s) 3840 x 2160 up to 180 fps (100 to 150 Mb/s) 2048 x 1080 up to 180 fps (35 Mb/s) 1920 x 1080 up to 180 fps (35 Mb/s) XF-HEVC S Long GOP 4:2:2/4:2:0 10-Bit 4096 x 2160 up to 120 fps (100 to 225 Mb/s) 3840 x 2160 up to 120 fps (100 to 225 Mb/s) 2048 x 1080 up to 180 fps (35 to 50 Mb/s)1920 x 1080 up to 180 fps (35 to 50 Mb/s) *Sensor Crops During Recording |
| Video Output | 4096 x 2160 |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | Canon Log 2, Canon Log 3 |
| Audio Recording | Cinema RAW Light: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S, XF-HEVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S, XF-HEVC S: 2-Channel, 16-Bit at 48 kHz via AAC Audio |
| IP Streaming | RTSP, UDP, RTP, SRT 1920 x 1080 at 50p, 59.94p, 59.94i, 50i (4.0 to 9.0 Mb/s) |
| Media/Memory Card Slot | Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC |
| Internal Storage | No |
| Video I/O | 1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Monitor Output 1x HDMI Output |
| Audio I/O | 2x Mini XLR Input 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body1x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x XLR 4-Pin (12VDC) Input |
| Other I/O | 1x USB-C Monitor 1x DIN 1.0/2.3 (Genlock, Return, Sync) 1x DIN 1.0/2.3 (Timecode) 1x RJ45 (XC) Control 1x Hirose 12-Pin (Lens Control) |
| Wireless | Wi-Fi 5 (802.11ac) |
| Mobile App Compatible | Yes: iOS Only App Name: Canon Multi-Camera Control App Functionality: View Live Feed, Remote Control, Adjust Settings |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | Primary Monitor: Included External 3.5″ Touchscreen LCD |
| Battery | Canon BP-AN Series |
| Power Consumption | ?32.5 W |
| Shoe Mount | 1x Intelligent Hot Shoe 1x Intelligent Hot Shoe on Included Handle |
| Accessory Mounting Thread | 1x ARRI/Hirth Rosette |
| Netflix Approved | Yes |
| Dimensions (W x H x D) | 5.6 x 5.3 x 5.3″ / 142 x 135 x 135 mm 14.2 x 10.8 x 14.3″ / 361 x 274 x 363 mm (With Handle, Grip, Mic Holder, Monitor Attachment) |
| Weight | 3.4 lb / 1.5 kg (Body Only) |
Package includes
- 1 x Canon EOS C400 6K Full-Frame Digital Cinema Camera (Canon RF)
1 x LCD Monitor
1 x LCD Bracket Mount
1 x Canon MC-5U USB-C LCD Monitor Cable
1 x Handle Unit
1 x Camera Grip
1 x Canon BP-A60N Battery Pack
1 x Canon CA-CP300B Compact Power Adapter
1 x Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
1 x Microphone Holder
