Description

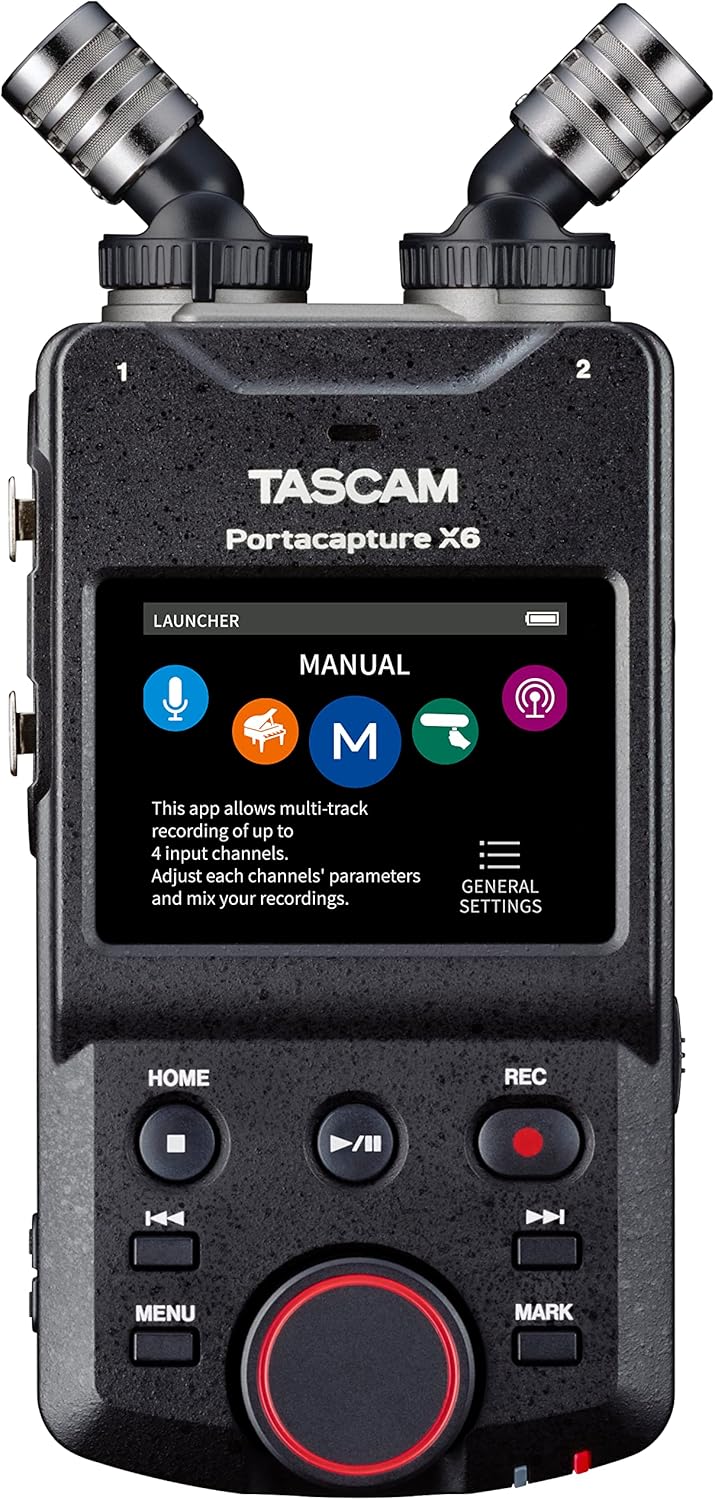

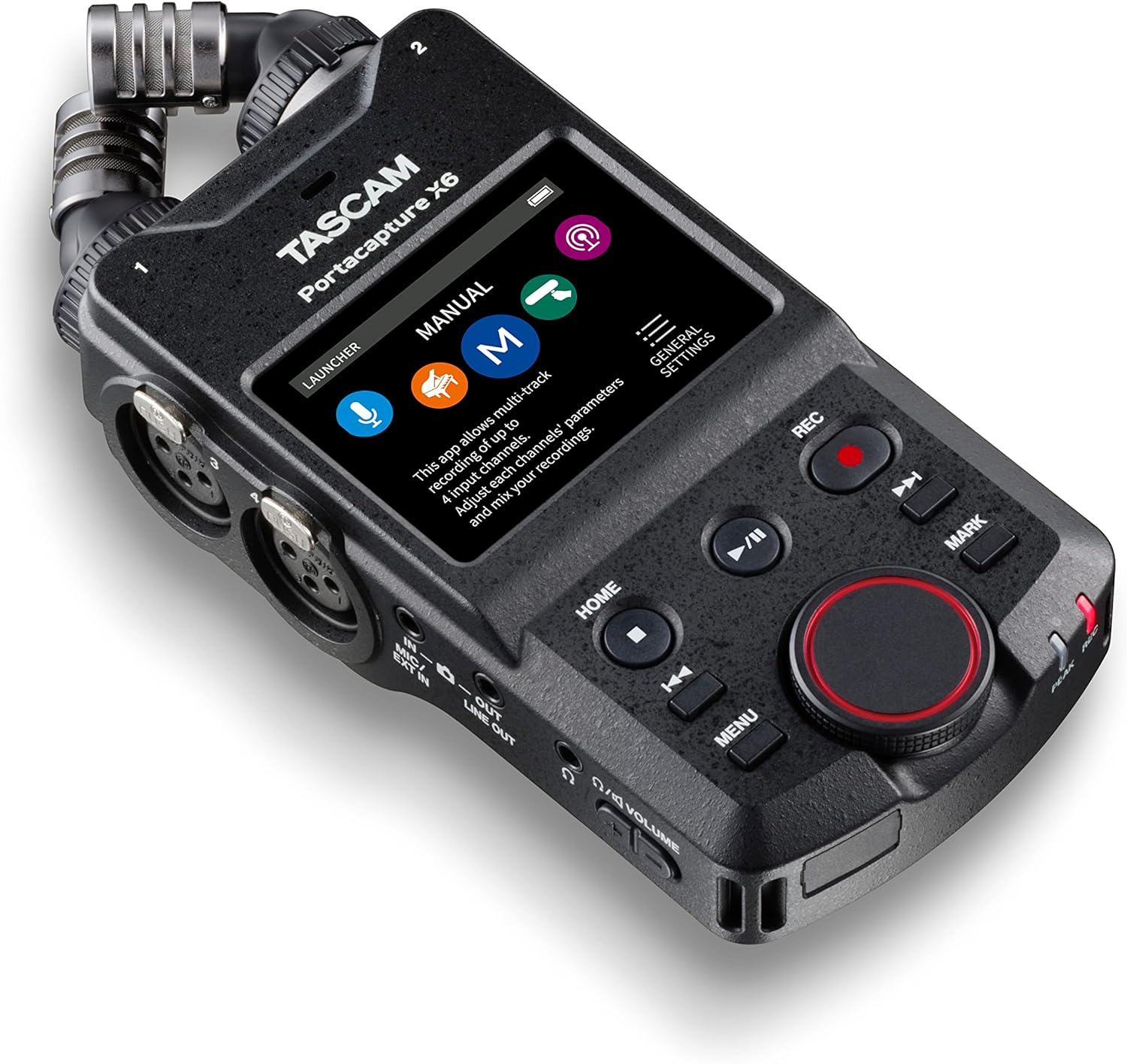

Powerful and portable, the Portacapture X6 from TASCAM is the streamlined version of the popular X8, redesigned and scaled back for videographers, podcasters, and content creators working on smaller productions. The compact size of the X6 makes it easy to position for numerous recording applications, while still retaining the ability to record up to six simultaneous tracks at 96 kHz / 32-bit floating point.
Specifications
| Form Factor | Handheld Recorder |
| Primary Use Applications | Audio-for-Video, Music Recording, Podcasting |
| Number of Tracks | 6 (3 Inputs + Stereo Mix) |
| Number of Input Channels | 4 (4 x Mono, 1 x Stereo) |
| Maximum Sampling Rate | 96 kHz / 32-Bit (PCM) |
| Microphone | Built-In Condenser Stereo Pair, A/B, X/Y Configurations |
| Number of Microphone Preamps | 2 Preamps |
| Built-In Speaker | Yes, 0.4 W Mono |
| Display | 2.4″ / 6.1 cm Color LCD Touchscreen |
| Memory Card Support | microSD, microSDHC, microSDXC (64 MB to 512 GB) |
| Internal Storage | None |
| Special Features | Remote Control Capable (Remote Available Separately) |
| Audio File Formats | BWF, MP3, WAV |
| Sample Rates | WAV: 96 kHz (Record/Playback) MP3: 48 kHz (Record/Playback) |
| Bit Depth | Up to 32-Bit (Floating Point) |
| Bit Rates | 128 to 320 kb/s (MP3) |
| Signal Processing & FX | Compressor, EQ, Limiter, Low-Cut Filter, Reverb |
| Timecode Support | Yes |
| Recording Time | MP3 320 kb/s: 888 Hrs (Stereo) WAV 96 MHz/32-Bit: 46 Hrs (Stereo) |
| Included Software | None |

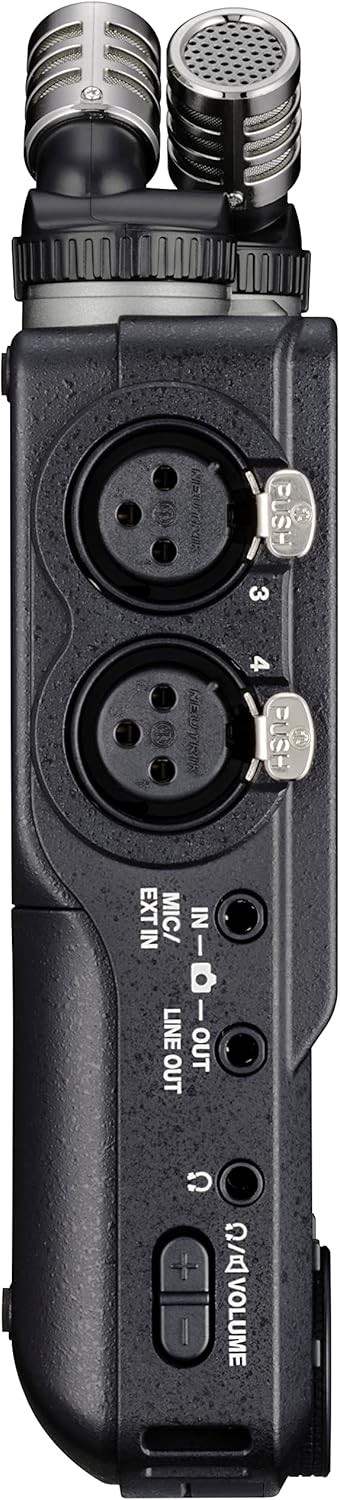

| Analog I/O | 2 x XLR 3-Pin Female Balanced/Unbalanced Line/Mic Input 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Input 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8″ / 3.5 mm TRS Female Headphone Output |
| Digital I/O | None |
| Phantom Power | +24 / 48 V, Selectable On/Off |
| Plug-In Power | Yes |
| System Connection | 1 x USB-C (Control, I/O) |
| Audio Interface Capability | Multi-Track |
| Mobile App Compatible | Yes |
| Frequency Response | Mic/Line Inputs, WAV: 20 Hz to 20 kHz ±0.3 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz ±0.4 dB (at 96 kHz, JEITA) |
| Max Input Level | Mic Inputs: +2 dBu Line Inputs: +24 dBu 1/8″ / 3.5 mm Line Inputs: 0 dBV |
| Max Output Level | Line Outputs: +6 dBV |
| Headphone Output Power | 45 mW per Channel into 32 Ohms |
| Dynamic Range | Mic/Line Inputs: 112 dB |
| Impedance | Mic/Line Inputs: 2.2 Kilohms (Mic Level) 9 Kilohms (Line Level) Line Inputs: 10 Kilohms (Plug-In Power Off) 1.8 Kilohms (Plug-In Power On) Line Outputs: 210 Ohms |
| THD+N | Mic Inputs: 0.006% Line Inputs: 0.008% |
| EIN | -125 dBu |
| Power Options | Battery, USB Bus Power, AC/DC Power Adapter |
| Battery Type | 2 x AA (Included) |
| Approximate Battery Life | WAV 44.1 kHz/24-Bit: 13.5 Hours (AA Alkaline, Phantom Off, Recording, Stamina Mode, Built-In Mic) 5.5 Hours (AA Alkaline, All Channels, Phantom On, Recording, Built-In Mic) 11 Hours (AA NiMH, Phantom Off, Recording, Stamina Mode, Built-In Mic) 5.5 Hours (AA NiMH, All Channels, Phantom On, Recording, Built-In Mic) 22 Hours (AA Lithium-Ion, Phantom Off, Recording, Stamina Mode, Built-In Mic) 11.5 Hours (AA Lithium-Ion, All Channels, Phantom On, Recording, Built-In Mic) |
| AC/DC Power Adapter | VDC Not Included |
| Included Accessories | Batteries |
| Mounting Options | 1/4″-20 Female (Bottom) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 3 x 6.9 x 1.5″ / 7.5 x 17.4 x 3.7 cm |
| Weight | 12.9 oz / 365 g (with Batteries) |
Package includes
1 x TASCAM Portacapture X6 32-Bit 6-Channel Multitrack Field Recorder
4 x AA Alkaline Battery
