Description

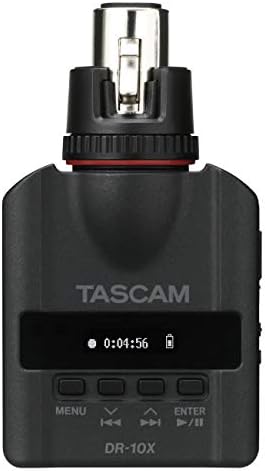

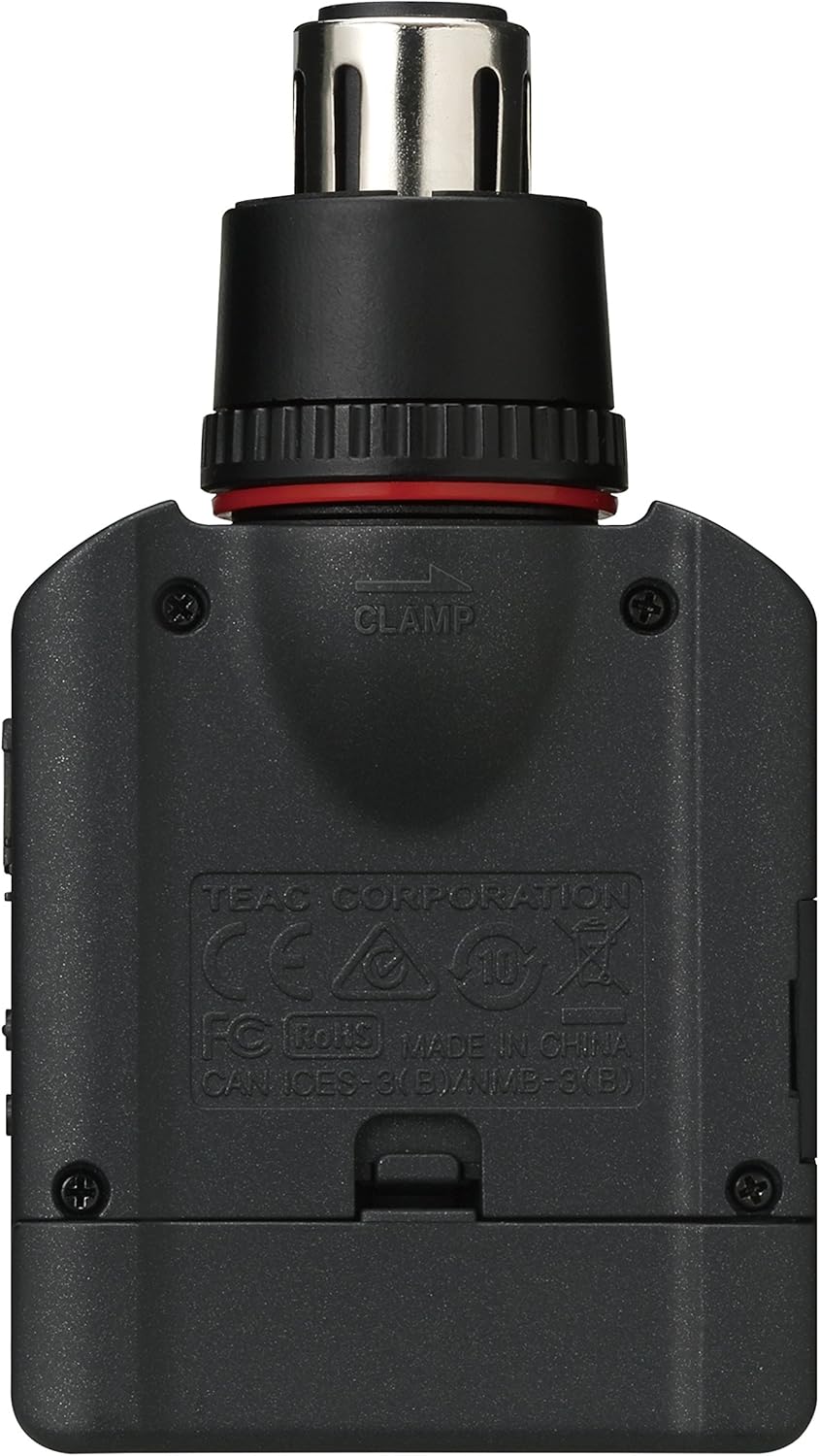

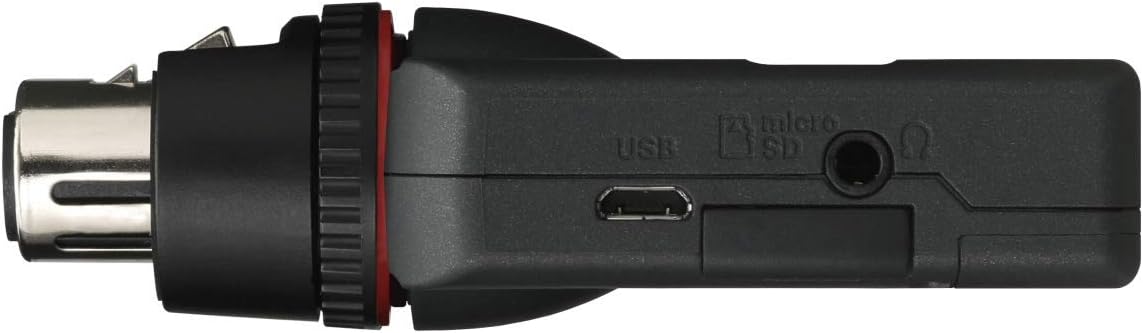

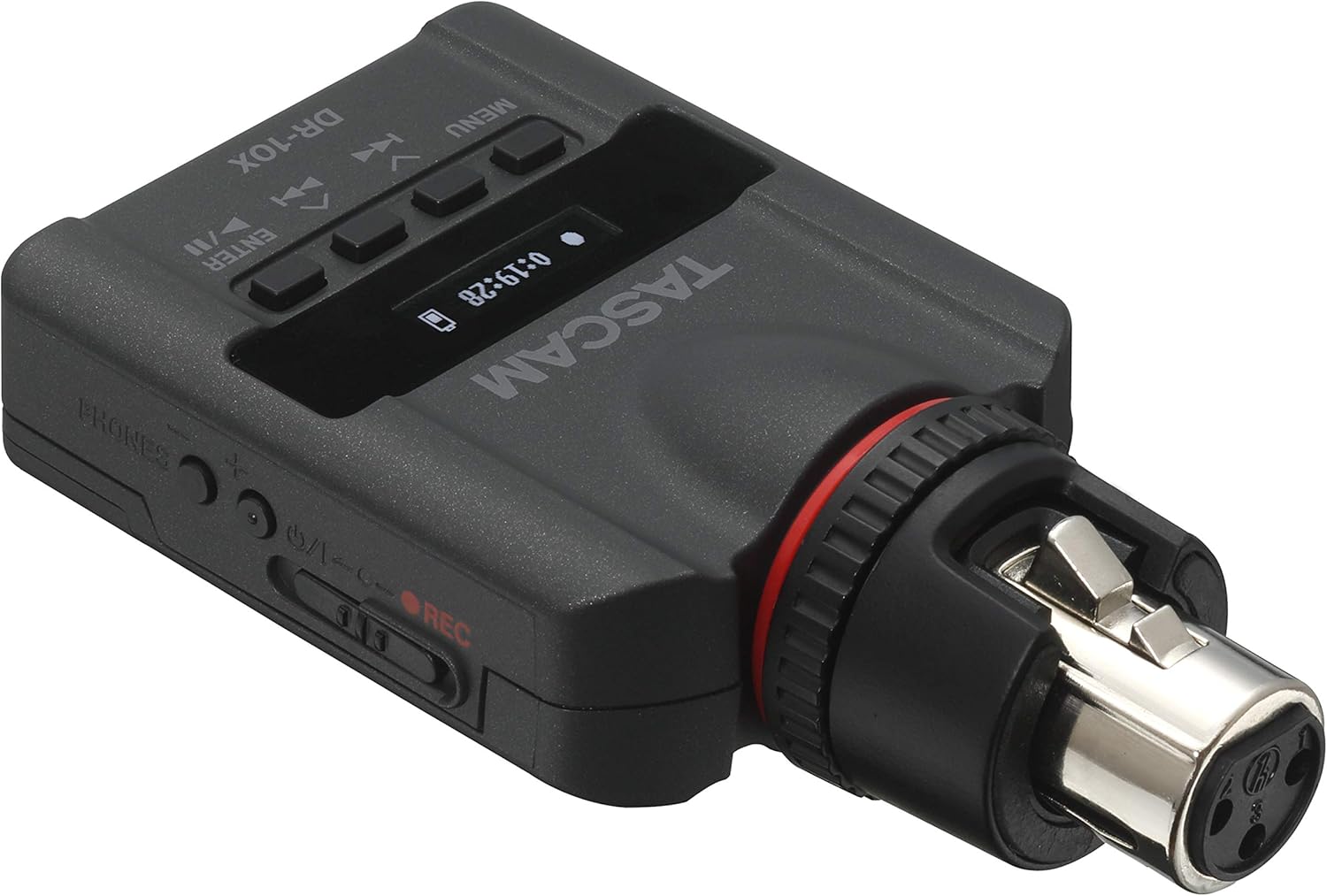

With the TASCAM DR-10X Micro Plug-On Audio Recorder attached directly to your preferred microphone, you can record full-resolution dialog and speech while skipping the trouble of long cable runs and avoiding the confusion of configuring a wireless microphone system. Whether you use a handheld dynamic mic or a battery-powered condenser (both available separately), the lightweight DR-10X can be discreetly affixed to the mic without weighing it down. Thanks to its small, low-profile design, the DR-10X is ideal for news gathering, interviews, weddings, and vlogs where the audio equipment needs to stay out of sight.
Specifications
| Number of Tracks | 1 |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Microphone | None |
| Built-In Speaker | No |
| Display | OLED |
| Memory Card Support | microSD (64 MB to 2 GB) microSDHC (4 to 32 GB) |
| Internal Storage | None |
| Audio File Formats | BWF, MP3, WAV |
| Sample Rates | WAV: 44.1 / 48 kHz |
| Bit Depth | 16 / 24-Bit |
| Bit Rates | 128 to 192 kb/s (Record) 32 to 320 kb/s (Playback) |
| Signal Processing & FX | Auto Gain, Limiter, Low-Cut Filter |
| Timecode Support | No |
| Recording Time | WAV 48 kHz/24-Bit: 2 Hrs 4 Mins per GB (Mono) |
| Analog I/O | 1 x XLR 3-Pin Female Balanced Mic Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output |
| Digital I/O | None |
| Phantom Power | None |
| Plug-In Power | No |
| System Connection | 1 x Micro-USB (2.0) |
| Frequency Response | 20 Hz to 22 kHz +1/-2 dB |
| Gain/Trim Range | +29 dB to +45 dB |
| Max Input Level | Mic Inputs: -31 dBu |
| Impedance | Mic Inputs: ?10 Kilohms |
| SNR | Mic Inputs: ?80 dB |
| Power Options | Batteries or USB Bus Power |
| Battery Type | 1 x AAA (Not Included) |
| Approximate Battery Life | WAV 48 kHz/24-Bit: 10 Hours (Alkaline, Mono, without Headphones) 8 Hours (NiMH, Mono, without Headphones) 15.5 Hours (Lithium, Mono, without Headphones) |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Dimensions | 2 x 3.7 x 1.1″ / 52 x 94.4 x 28 mm |
| Weight | 2.4 oz / 68.3 g (with Batteries) 2 oz / 56.3 g (without Batteries) |
Package includes
1 x TASCAM DR-10X Micro Plug-On Audio Recorder
1 x USB Cable
