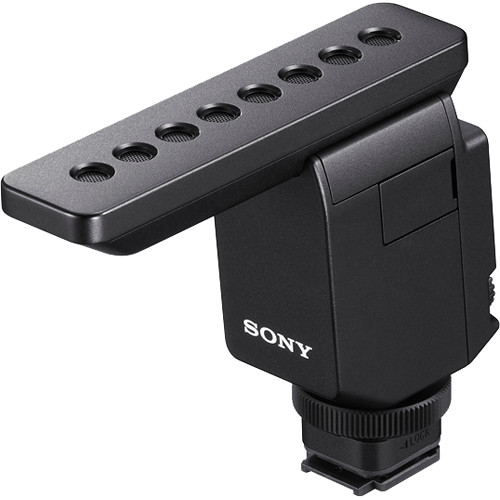

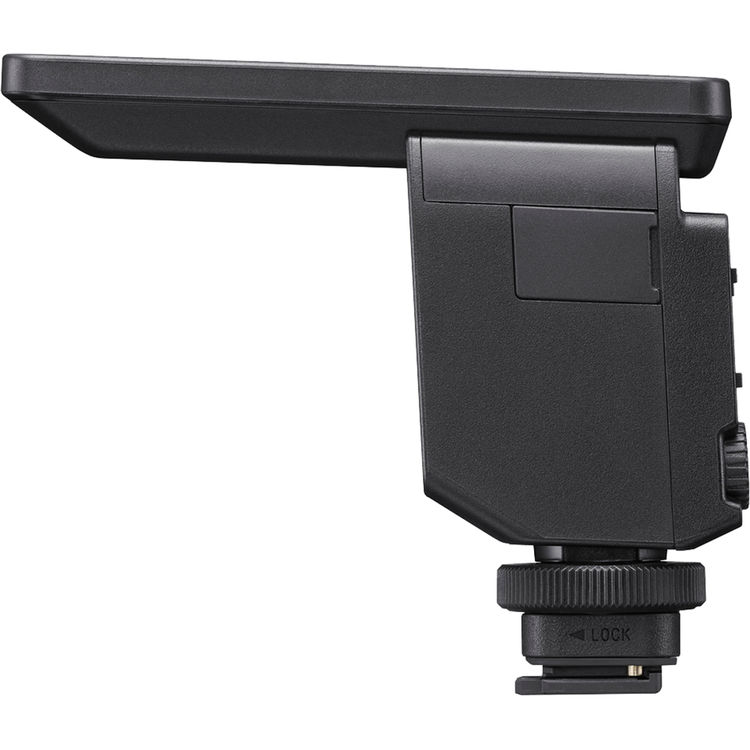

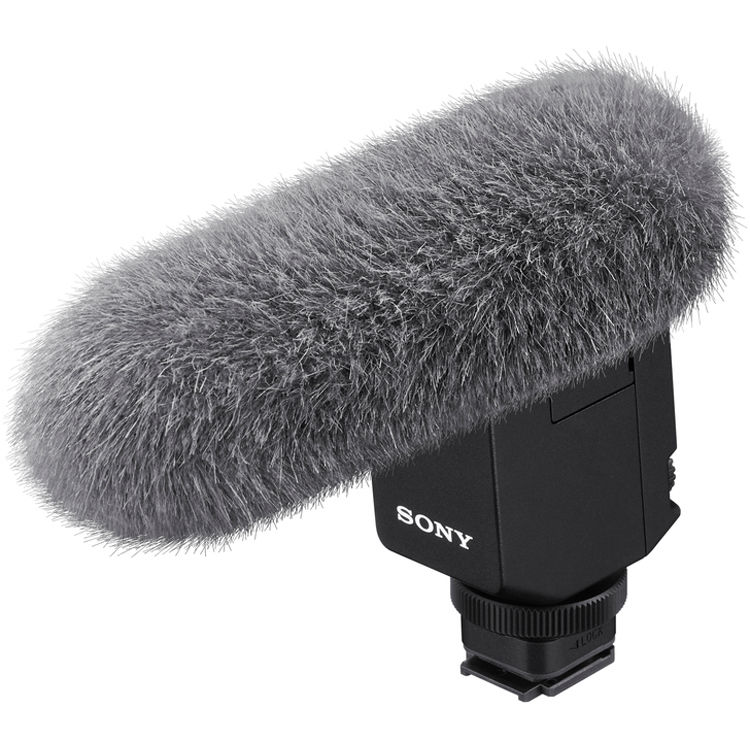

Sony ECM-B1M Camera-Mount Digital Shotgun Microphone

Sony ECM-B1M Camera-Mount Digital Shotgun Microphone - Image 2

Sony ECM-B1M Camera-Mount Digital Shotgun Microphone

Name: Sony ECM-B1M Camera-Mount Digital Shotgun Microphone
SKU: 13044
Price: 211.95 GBP
Availability: InStock

£211.95

6-month TechInOut warranty included. Extend to 12 months below. Warranty details

Designed for Sony a7R IV

Mounts via Sony Multi Interface Shoe

3 x Selectable Directivity Patterns

Selectable Digital/Analog Output

Estimated UK delivery in 6–9 business days from your order.

Dispatched from Hong Kong by tracked courier (DHL, FedEx or UPS).

No import fees: UK duty and VAT are already included in the price. Shipping details · 14-day returns

In stock

Pay safely with PayPal or card. PayPal payments are covered by PayPal Buyer Protection on eligible purchases.

Wishlist Compare

SKU: 13044 Category: Microphones Tags: ECM-B1M, microphone, mount shotgun microphone, sony

Description

The Sony ECM-B1M is an ultra-compact camera-mount digital shotgun microphone designed for mobile video creators working with Sony cameras equipped with the Multi Interface Shoe. Released alongside the a7R IV, which benefits from its built-in Digital Audio Interface, the ECM-B1M is able to produce its best quality by delivering a digital audio stream directly to the camera through the Multi Interface Shoe. Other Sony cameras with the standard Multi Interface Shoe can still make use of the microphone as there is a selectable digital/analog output.

Specifications:

Primary Applications	ENG (Electronic News Gathering), Audio for Video, Location Sound, Field Recording
Form Factor	Camera-Mount
Intended Sound Sources	Vocals, Speech/Voice-Over, Room Ambiance
Sound Field	Mono
Operating Principle	Pressure Gradient Pressure Operated
Element Type	8x Electret Condenser
Polar Pattern	Cardioid, Omnidirectional, Supercardioid
Pattern Selection	Switched
Orientation	End Address
Circuitry	Solid-State
Pad	-10 dB -20 dB
High-Pass Filter	Yes
Tone Adjustment	No
Gain Adjustment	Yes
Indicators	No

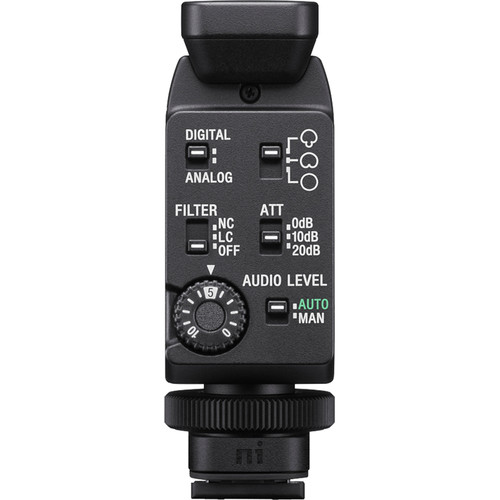

On-Board Controls	Gain/Sensitivity, High-Pass Filter, Pad, Polar Pattern
Frequency Range	40 Hz to 20 kHz
Maximum SPL	120 dB SPL
Sensitivity	-20 dBFS at 1 kHz
Dynamic Range	106 dB
Analog Output	No
USB/Digital Output	1x Sony Multi Interface Shoe
Wireless	No
Digital Signal Processing	Noise Reduction
OS Compatibility	No
Mounting	Camera/Shoe-Mount (via Integrated Hardware)
Mounting Thread Size	Included Mount Has No Threading
Included Filters	No
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 131°F / -20 to 55°C
Dimensions	H: 3.22 x W: 1.08 x L: 3.91″ / H: 81.8 x W: 27.4 x L: 99.3 mm
Weight	2.8 oz / 79 g
