Description

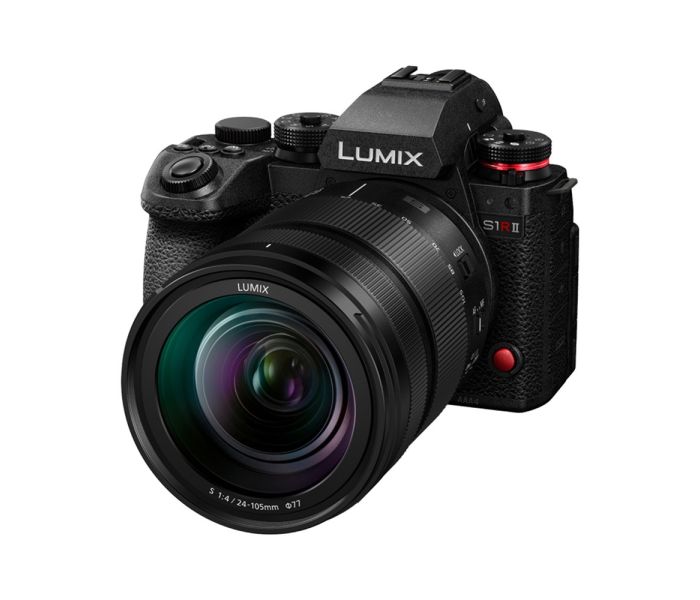

The S1R II is designed to be a premier tool for landscape, commercial, and editorial photographers who also need to produce high-end video. It upgrades the original S1R by adopting a smaller, more ergonomic body similar to the S5 II, while significantly improving speed and autofocus capabilities.
Autofocus Evolution: By introducing Phase Hybrid AF, the S1R II resolves the speed and tracking limitations of the older contrast-detection systems, making it suitable for sports and wildlife, supported by AI detection for a wider range of subjects.
Video Powerhouse: As the first Lumix camera to offer 8K internal recording, it is a significant step up, allowing for massive cropping options in post-production. The 6.4K/8.1K Open Gate functionality provides immense flexibility for producing content for multiple aspect ratios simultaneously.
Workflow Enhancements: The camera supports direct-to-SSD recording via USB-C for high-bitrate, long-form shooting. It is also the first Lumix camera to support native Capture One tethering, making it highly efficient for studio, commercial, and portrait photography.
Hardware Refinements: A new “shutter close” function protects the sensor from dust during lens changes. The 3.0-inch screen now features a tilt and free-angle mechanism, providing flexibility without interfering with cables.
Specifications
| Lens Mount | L-Mount |
| Effective Sensor Resolution | Effective: 44.3 Megapixel Actual: 45.9 Megapixel |
| Image Sensor | 35.8 x 23.9 mm (Full-Frame) CMOS |
| Sensor Crop (35mm Equivalent) | Crop Factor: 1x |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Capture Type | Stills & Video |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| Shutter Speed | Electronic Shutter 1/8000 to 60 Seconds in Aperture Priority Mode 1/16000 to 60 Seconds in Shutter Priority Mode 1/10000 to 1/25 Seconds in Movie Mode Electronic Front Curtain Shutter 1/2000 to 60 Seconds Mechanical Shutter 1/8000 to 60 Seconds |
| Bulb/Time Mode | Bulb Mode (Up to 30 Minutes) |
| ISO/Gain Sensitivity | Photo Native in Auto Mode: 40 to 102,400 Video Native in Auto Mode: 200 to 51,200 |
| Metering Method | Center-Weighted Average, Highlight Weighted, Multiple, Spot |
| Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Exposure Compensation | -5 to +5 EV (1/3 EV Steps) |
| Metering Range | 0 to 18 EV |
| White Balance | Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4 |
| Continuous Shooting | Up to 40 fps at Maximum Resolution for up to 40 Frames (Raw) |
| Interval Recording | Yes |
| Self-Timer | 2/10-Second Delay |
| Aspect Ratio | 1:1, 2:1, 3:2, 4:3, 16:9, 65:24 |
| Image File Format | JPEG, Raw |
| Internal Recording | H.264 Long GOP/MOV 4:2:0 10-Bit 7680 x 4320 at 29.97/23.98 fps300 Mb/s) H.264 Long GOP/MOV 4:2:2/4:2:0 8/10-Bit 4096 x 2160 at 29.97/47.95/120/59.94/23.98 fps (100 to 800 Mb/s) 3840 x 2160 at 47.95/23.98/29.97/59.94 fps (100 to 800 Mb/s) |
| Video Output | 3840 x 2160 at 25/29.97 fps 1280 x 720 at 59.94/25/29.97/50 fps |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | Panasonic V-Log |
| Recording Limit | No |
| IP Streaming | No |
| Built-In Microphone | Stereo |
| Audio Recording | MOV: 2-Channel 24-Bit 48 kHz LPCM Audio MP4: 2-Channel 16-Bit 48 kHz AAC Audio |
| Media/Memory Card Slot | Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) |
| Internal Storage | No |

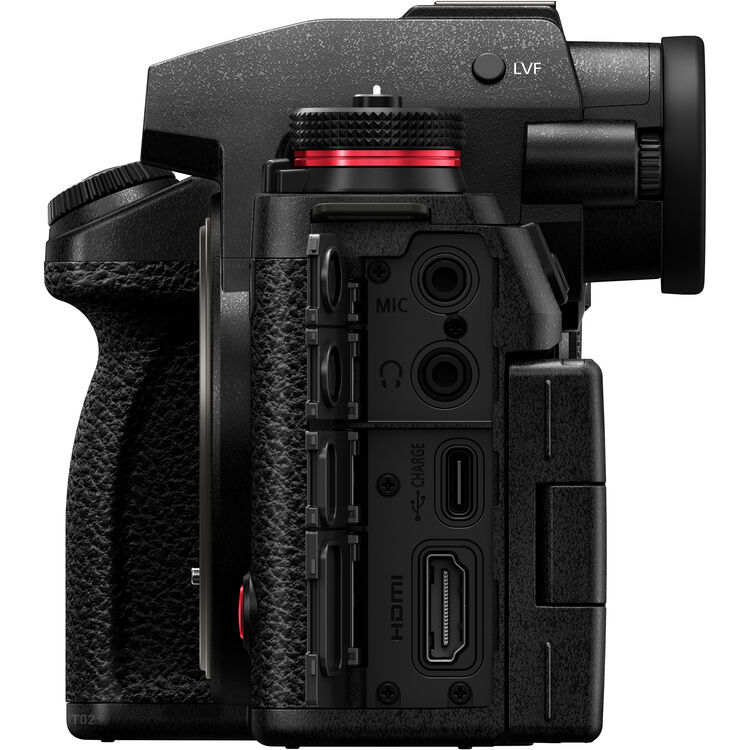

| Video I/O | 1x HDMI Output |
| Audio I/O | 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 1) Data Output (Shared with Power Input) |
| Wireless | Bluetooth 5.0 / Wi-Fi 5 (802.11ac) |
| Mobile App Compatible | Yes: Android & iOS App Name: LUMIX Lab/LUMIX Flow |
| Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |

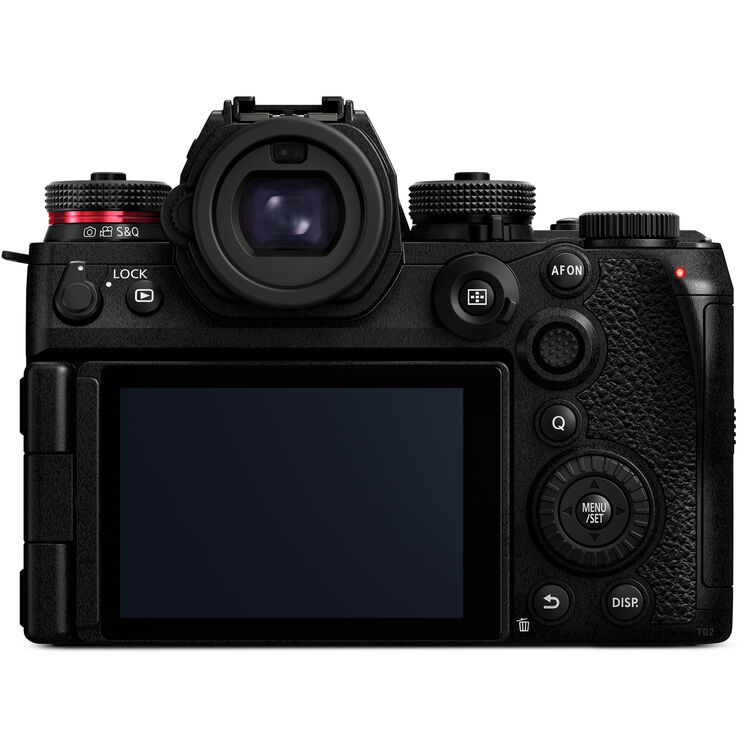

| Display Type | Articulating 3″ Touchscreen LCD |
| Resolution | 1,840,000 Dot |
| Viewfinder Type | Electronic (OLED) |
| Resolution | 5,760,000 Dot |
| Eye Point | 21 mm |
| Coverage | 100% |
| Magnification | Approx. 0.78x |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Continuous-Servo AF, Manual Focus |
| Autofocus Sensitivity | -6 to +18 EV |
| Built-In Flash/Light | No |
| Flash Modes | Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV (1/3 EV Steps) |
| Dedicated Flash System | TTL |
| External Flash Connection | Shoe Mount, PC Terminal |
| Battery | 1x DMW-BLK22 Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Included) |
| Shoe Mount | 1x Hot Shoe |
| Tripod Mount | 1x 1/4″-20 Female (Bottom) |
| Accessory Mounting Thread | 1x 1/4″-20 on Camera Body |
| Materials | Magnesium Alloy |
| Operating Conditions | -14 to 104°F / -25 to 40°C at 10 to 80% Humidity (Recommended) |
| Dimensions (W x H x D) | 4.03 x 5.29 x 3.61″ / 102.36 x 134.37 x 91.69 mm |
| Weight | 1.57 lb / 0.71 kg (Body Only) 1.75 lb / 0.79 kg (With Battery) |
| Panasonic Lumix S 24-105mm f/4 Macro Specs | |
|---|---|
| Focal Length | 24 to 105mm |
| Aperture | Maximum: f/4 Minimum: f/22 |
| Lens Mount | L-Mount |
| Lens Format Coverage | Full-Frame |
| Angle of View | 84° to 23° |
| Minimum Focus Distance | 11.81″ / 30 cm |
| Magnification | 1:2 Macro Reproduction Ratio 0.5x Magnification |
| Optical Design | 16 Elements in 13 Groups |
| Aperture/Iris Blades | 9, Rounded |
| Focus Type | Autofocus |
| Image Stabilization | Yes |
| Filter Size | 77 mm (Front) |
| Dimensions | ø: 3.31 x L: 4.65″ / ø: 84 x L: 118 mm |
| Weight | 1.5 lb / 680 g |
Package Includes:
- 1 x Panasonic LUMIX S1R II Mirrorless Camera
1 x BTC15 Charging Block
1 x DMW-BLK22 Rechargeable Battery Pack
1 x Shoulder Strap
1 x Hot Shoe Cover
1 x Body Cap
1 x Panasonic LUMIX S 24-105mm f/4 Macro O.I.S. Lens
1 x Front Lens Cap
1 x Rear Lens Cap
1 x Lens Hood
1 x Lens Bag
