Description

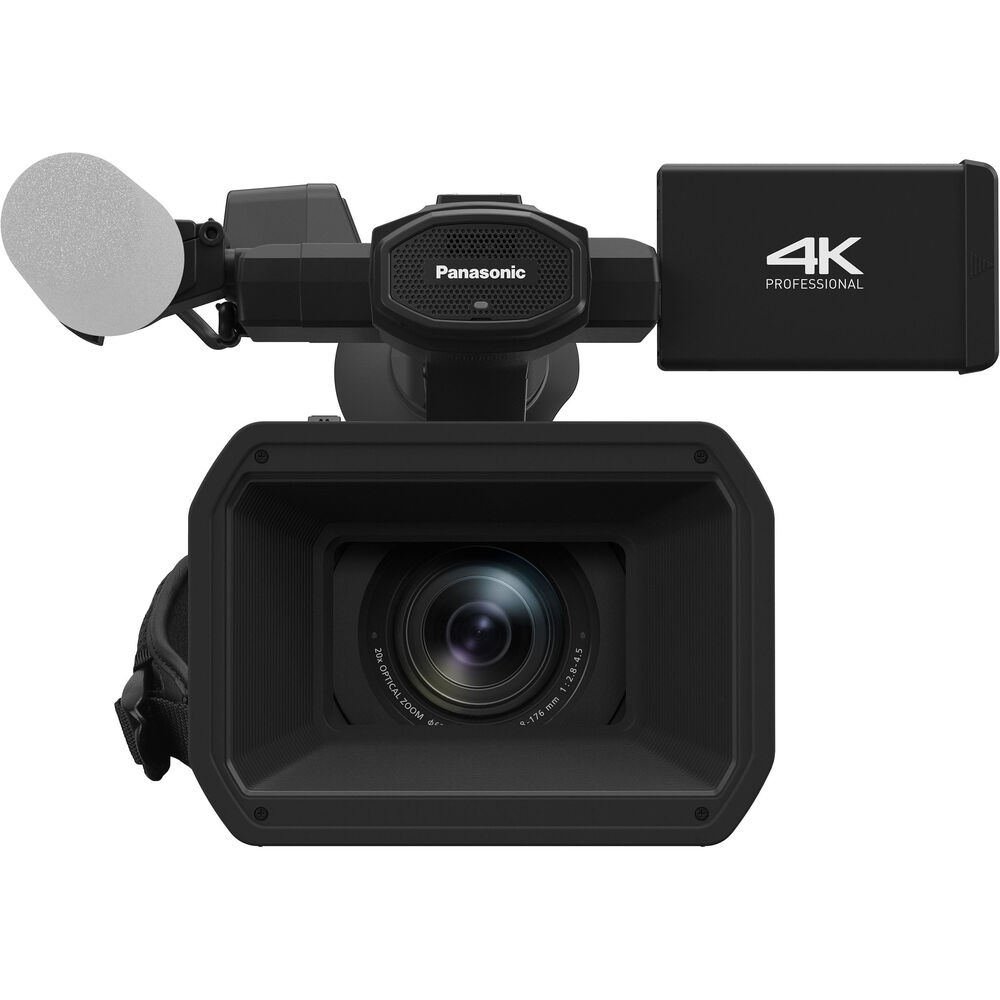

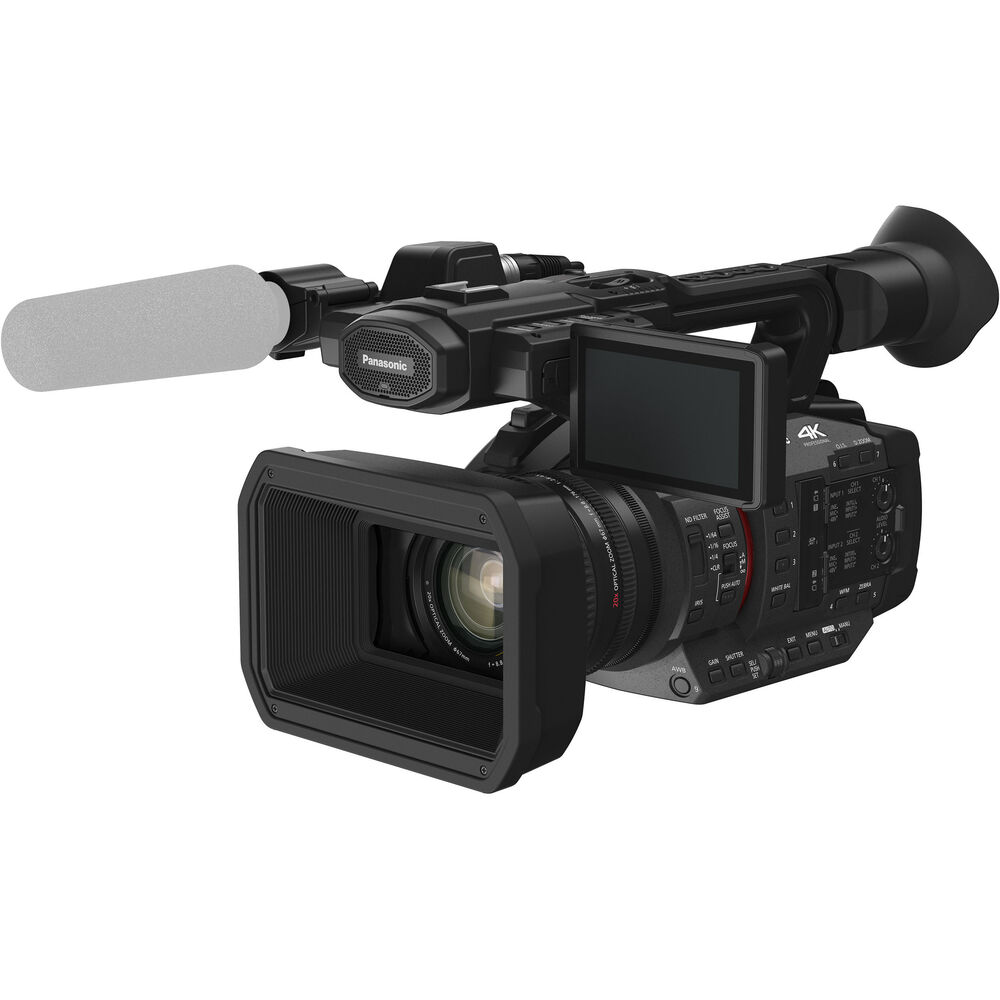

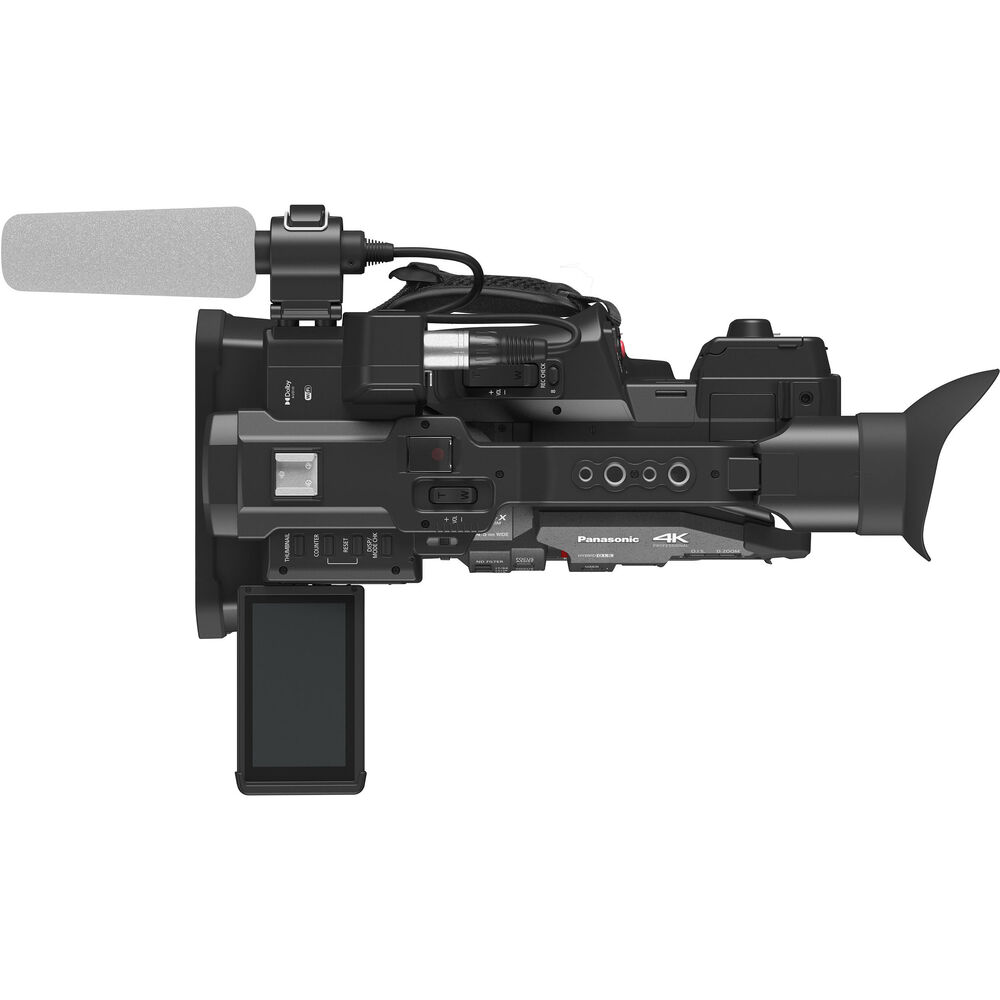

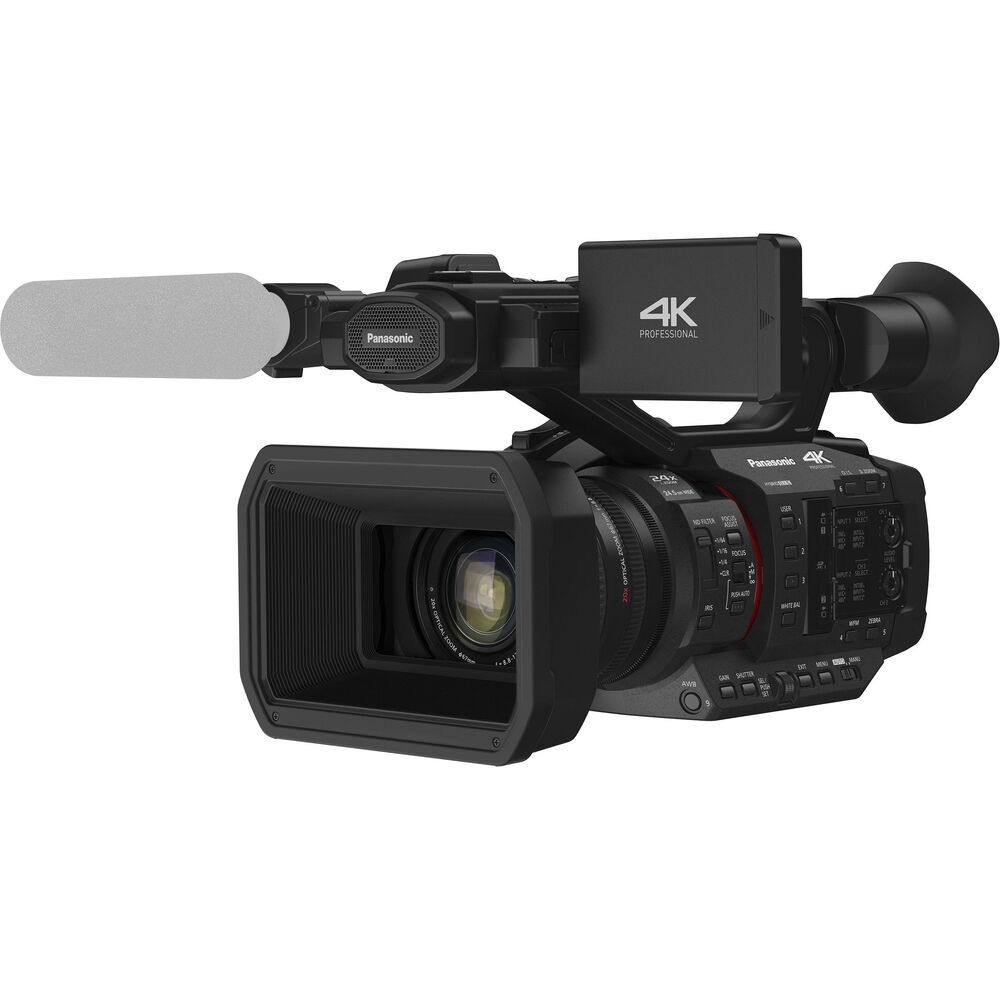

Bring your mobile sports, event, or documentary video productions into the world of 4K with the Panasonic HC-X20 4K Mobile Camcorder with Rich Connectivity. Featuring a large 1″ 15.03MP 4K sensor, the HC-X20 can record high-quality, professional-grade video in up to UHD 4K (3840 x 2160) 10-bit 4:2:2 resolutions. You can also record 1080p in VFR (variable frame rate) in 10 increments from 2 to 60 fps, as well as record HD video in a super-slow-motion mode at a frame rate up to 120 fps. The X20 also features numerous enhancements to its high-speed AF with face detection, a brighter monitor, UHD 4K image stabilization, and built-in Wi-Fi.
Specifications
| Image Sensor | 1″-Type MOS |
| Effective Sensor Resolution | 15.03 Megapixel |
| Image Stabilization | Optical in Integrated Lens, 5-Axis (Video Only) Digital |
| Built-In ND Filter | Mechanical Filter Wheel with 6-Stop (1/64), 2-Stop (1/4), 4-Stop (1/16), Clear ND Filters |
| Capture Type | Stills & Video |
| Shutter Type | Mechanical Focal Plane Shutter |
| Shutter Speed | 1/6 to 1/8000 Second |
| White Balance | Range: 3200 to 15,000K Presets: ATW, Auto |
| Focus Mode | Automatic, Manual Focus |
| Internal Recording | MOV 4:2:2 10-Bit 3840 x 2160 from 2 to 60.00 fps (200 Mb/s VBR) 1920 x 1080p from 2 to 23.98/59.94 fps (50 to 200 Mb/s VBR) 1920 x 1080i at 50/59.94 fps (50 Mb/s VBR) MOV 4:2:0 8/10-Bit 3840 x 2160 from 2 to 59.94 fps (100 to 200 Mb/s VBR) MP4 4:2:0 10-Bit 3840 x 2160 at 25/29.97/50/59.94/23.98 fps (72 to 100 Mb/s VBR) MP4 4:2:0 8-Bit 3840 x 2160 at 25/29.97/23.98 fps (72 Mb/s VBR) 1920 x 1080p at 23.98/50/59.94 fps (50 Mb/s VBR) AVCHD 4:2:0 8-Bit 1920 x 1080p at 29.97/50/59.94/23.98 fps (17 to 25 Mb/s VBR) 1920 x 1080i at 50/59.94 fps (17 Mb/s VBR) 1280 x 720 at 50/59.94 fps (8 Mb/s VBR) |
| Video Output | 3840 x 2160 at 25/29.97/50/59.94/23.98 fps 1920 x 1080 at 59.94/23.98/25/29.97/50 fps 1280 x 720 at 59.94/50 fps 720 x 576 at 50 fps 720 x 480 at 59.94 fps |
| Broadcast Output | NTSC PAL |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone | Stereo |
| Audio Recording | AVCHD: 2-Channel, 16-Bit at 48 kHz MP4: 2-Channel, 16-Bit at 48 kHz via AAC Audio MOV: 2-Channel, 24-Bit at 48 kHz |
| IP Streaming | H.264, RTSP, MP4, RTMP, RTP, RTMPS 320 x 180 to 1920 x 1080 at 50p, 59.94p, 60p, 30p, 24p (0.5 to 24.00 Mb/s) |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) |
| Internal Storage | No |
| Audio I/O | 2x XLR 3-Pin Microphone Input (+48 V Phantom Power) 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x Barrel (12VDC at 3 A) Input |
| Other I/O | 1x 2.5 mm Sub-Mini Input 1x USB-C Input |
| Wireless | Wi-Fi 4 (802.11n) |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor Display Type | Primary Monitor: Articulating 3.5″ Non-Touchscreen LCD |
| Viewfinder Type | Electronic (OLED) |
| Resolution | 1,770,000 Dot |
| Battery | Panasonic AG-VBR Series |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Dimensions (W x H x D) | 6.7 x 7.7 x 13.5″ / 17.1 x 19.5 x 34.3 cm (With Protrusions) |
| Weight | 4.4 lb / 2 kg (Body Only) 5.3 lb / 2.4 kg (With Grip, Viewfinder, Battery) |
Package includes
-
1 x Panasonic HC-X20 4K Mobile Camcorder with Rich Connectivity
1 x Power Supply
1 x Power Cable
1 x 5900mAh Battery
1 x Battery Charger
1 x Microphone Holder
1 x Microphone Holder Screw Set
1 x Input Terminal Cap
1 x Eye Cup
1 x Lens Hood
