Description

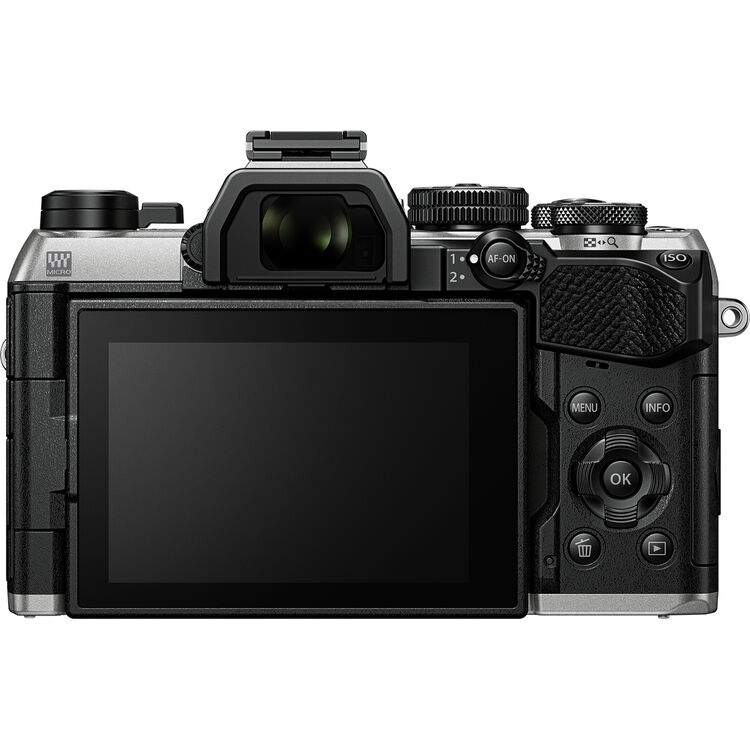

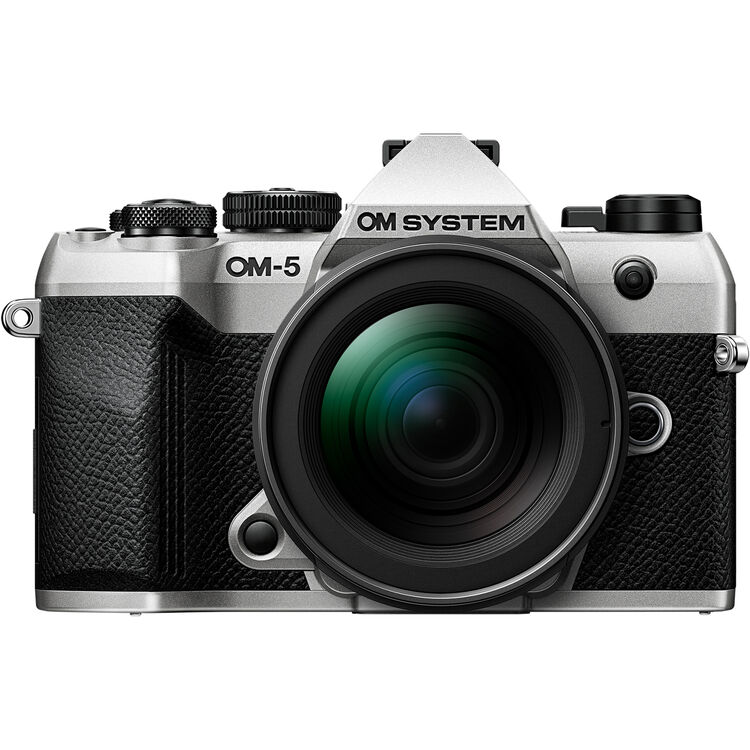

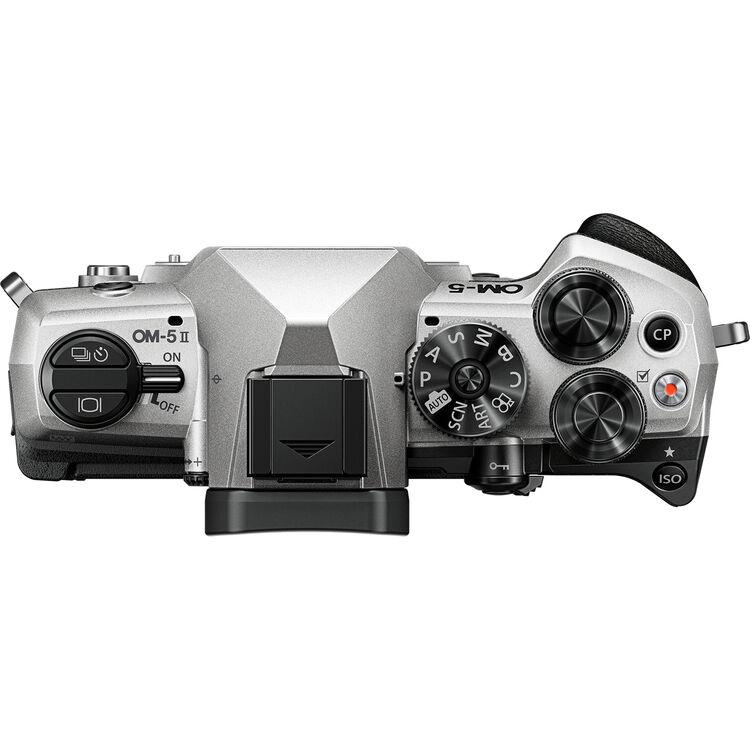

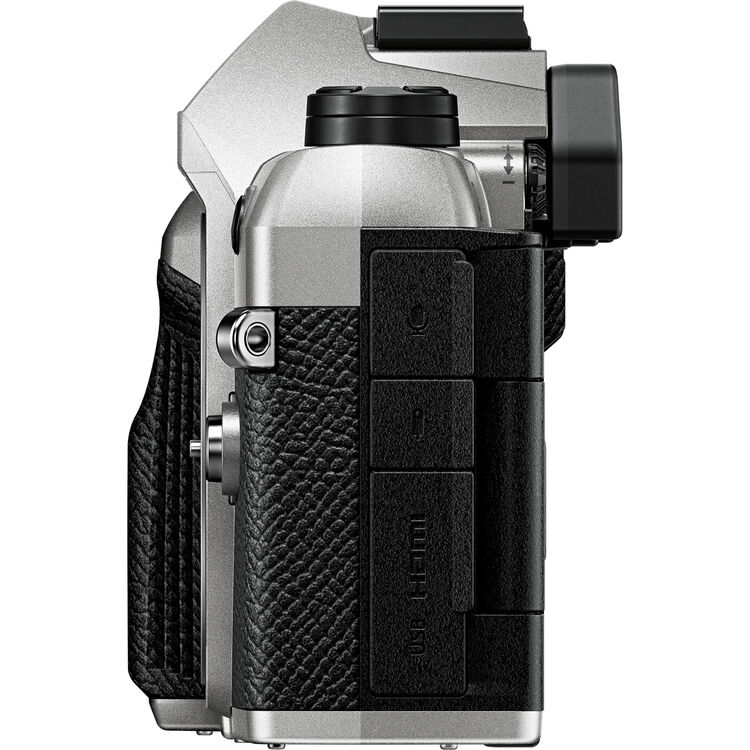

The OM-5 Mark II is designed to be a lightweight, robust, and highly portable camera, perfect for photographers who travel light but require professional-grade features. It boasts advanced computational photography tools—such as Live Composite for long exposures and Handheld High-Res Shot for increased resolution—that allow for complex imaging without a tripod. The updated, ergonomic body and intuitive menu system make it more user-friendly than its predecessor, catering to both hobbyists and experienced creators looking for a durable, all-weather companion.
Specifications
| Lens Mount | Micro Four Thirds |
| Effective Sensor Resolution | Effective: 20.4 Megapixel Actual: 21.8 Megapixel |
| Image Sensor | 17.4 x 13 mm (Four Thirds) CMOS |
| Sensor Crop (35mm Equivalent) | Crop Factor: 2x |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Built-In ND Filter | No |
| Capture Type | Stills & Video |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| Shutter Speed | Electronic Shutter 1/32000 to 60 Seconds Electronic Front Curtain Shutter 1/320 to 60 Seconds Mechanical Shutter 1/8000 to 60 Seconds |
| Bulb/Time Mode | Bulb & Time Mode |
| ISO/Gain Sensitivity | Photo/Video Native in Manual Mode: 200 to 25,600 Native in Auto Mode: 6400 |
| Metering Method | Center-Weighted Average, Highlight Weighted, Multi-Zone, Spot |
| Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Exposure Compensation | -5 to +5 EV (1/3, 1/2, 1 EV Steps) |
| Metering Range | -2 to 20 EV |
| White Balance | Presets: Auto, Kelvin |
| Continuous Shooting | Up to 30 fps at Maximum Resolution |
| Interval Recording | Yes |
| Self-Timer | 2/12-Second Delay |
| Aspect Ratio | 1:1, 3:2, 3:4, 4:3, 16:9 |
| Image File Format | JPEG, Raw |
| Bit Depth | 12-Bit |
| Internal Recording | H.264/MPEG-4 AVC 4096 x 2160 at 24.00 fps (240 Mb/s) 3840 x 2160 at 24.00/25/30.00 fps (105 Mb/s) 1920 x 1080 at 120/50/24.00/25/30.00/60.00 fps (30 to 205 Mb/s) 1280 x 720 at 50/24.00/25/30.00/60.00 fps |
| Video Output | via HDMI 4096 x 2160 3840 x 2160 1920 x 1080 1280 x 720 |
| Fast-/Slow-Motion Support | Yes |
| Recording Limit | No |
| IP Streaming | Yes |
| Built-In Microphone | Stereo Mono |
| Audio Recording | 16-Bit 48 kHz LPCM Audio |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Internal Storage | No |
| Video I/O | 1x Micro-HDMI Output |
| Audio I/O | 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x USB-C Data Output (Shared with Power Input) |
| Wireless | Wi-Fi 4 (802.11n) / Bluetooth 5.2 |
| Mobile App Compatible | Yes: Android & iOS App Name: OM Image Share |
| Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |
| Display Type | Articulating 3″ Touchscreen LCD |
| Resolution | 1,037,000 Dot |
| Viewfinder Type | Electronic (OLED) |
| Resolution | 1024 x 768 (2,360,000 Dot) |
| Coverage | 100% |
| Magnification | Approx. 1.48x |
| Diopter Adjustment | -4 to +2 |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points | Photo, Video Contrast Detection, Phase Detection: 121 |
| Built-In Flash/Light | No |
| Flash Modes | Auto, Fill In, Manual, Off, Slow Sync, TTL Auto |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV |
| Dedicated Flash System | TTL |
| External Flash Connection | Shoe Mount |
| Battery | 1x BLS-50 Rechargeable Lithium-Ion (Included) • Approx. 310 Shots |
| Shoe Mount | 1x Hot Shoe |
| Tripod Mount | 1x 1/4″-20 Female |
| Materials | Magnesium Alloy |
| Dimensions (W x H x D) | 4.9 x 3.4 x 2″ / 125.3 x 85.2 x 49.7 mm |
| Weight | 13.1 oz / 370 g (Body Only) | OM SYSTEM M.Zuiko Digital ED 12-45mm f/4 PRO Lens Specs |
|---|---|
| Focal Length | 12 to 45mm (35mm Equivalent: 24 to 90mm) |
| Aperture | Maximum: f/4 Minimum: f/22 |
| Lens Mount | Micro Four Thirds |
| Lens Format Coverage | Micro Four Thirds |
| Angle of View | 84° to 27° |
| Minimum Focus Distance | 4.72″ / 12 cm |
| Magnification | 1:4 Macro Reproduction Ratio 0.25x Magnification |
| Optical Design | 12 Elements in 9 Groups |
| Aperture/Iris Blades | 7, Rounded |
| Focus Type | Autofocus |
| Image Stabilization | No |
| Filter Size | 58 mm (Front) |
| Dimensions | ø: 2.5 x L: 2.76″ / ø: 63.4 x L: 70 mm |
| Weight | 8.96 oz / 254 g |
Package includes
-
1 x OM SYSTEM OM-5 Mark II Mirrorless Camera (Silver)
1 x USB-A to USB-C Cable
1 x OM SYSTEM BLS-50 Lithium-Ion Battery (7.2V, 1210mAh)
1 x Shoulder Strap
1 x OM SYSTEM M.Zuiko Digital ED 12-45mm f/4 PRO Lens
1 x Front Lens Cap
1 x Rear Lens Cap
1 x Lens Hood
