Description

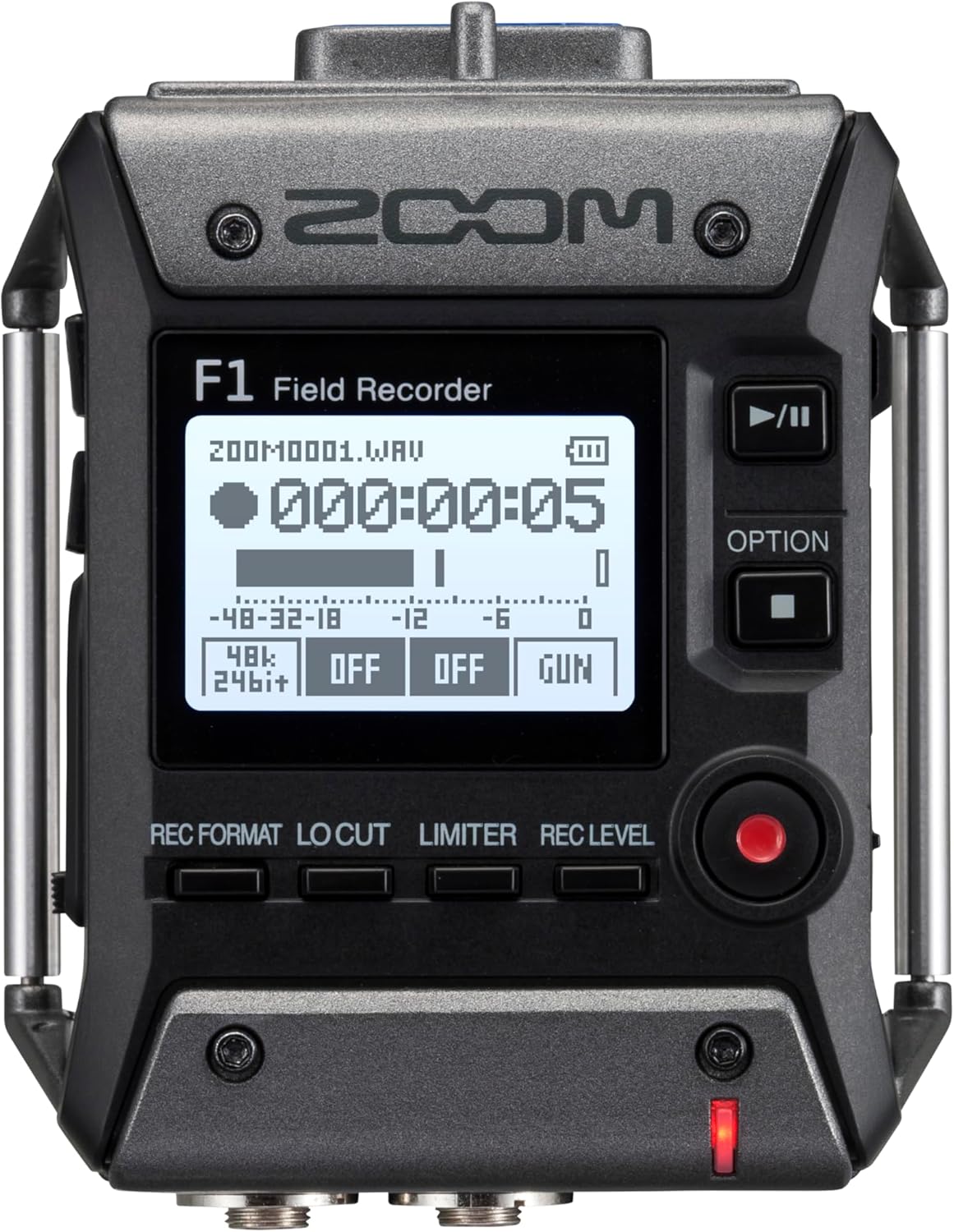

Record clear, crisp dialog in a hurry for your next run-and-gun video shoot or interview with the Zoom F1-SP, a 2-track portable field recorder with an onboard limiter and auto-level control providing distortion-free 24-bit audio, and 3-capsule, supercardioid shotgun microphone for easy setup on your camera. Whereas other F-Series recorders such as the F4, F6, and F8n are centered around a sound bag–ready form factor, the F1-SP’s diminutive size is tailored for camera- or tripod-mounted placement.
Specifications
| Number of Tracks | 2 |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Microphone | Interchangeable Supercardioid Shotgun |
| Built-In Speaker | No |
| Display | Monochrome LCD (Backlit) |
| Memory Card Support | microSD, microSDHC (Up to 32 GB) |
| Internal Storage | None |
| Audio File Formats | BWF, ID3v1, MP3, WAV |
| Sample Rates | 44.1 / 48 / 96 kHz |
| Bit Depth | 16 / 24-Bit |
| Bit Rates | 48 to 320 kb/s |
| Signal Processing & FX | Auto Gain, Limiter, Low-Cut Filter |
| Timecode Support | No |
| Analog I/O | 1 x Proprietary 10-Pin Mic Capsule Input 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line/Mic Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone/Line Output (Lockable) |
| Digital I/O | None |
| Phantom Power | None |
| Plug-In Power | Yes, 2.5 V |
| Host Connection | 1 x Micro-USB (USB 2.0) |
| Gain/Trim Range | Mic/Line Inputs: -12 to +36 dB Shotgun Mic Capsule: Up to +50 dB |
| Headphone Output Power | 11 mW per Channel into 32 Ohms |
| Impedance | Inputs: ?2 Kilohms |
| Microphone Sensitivity | -39 dB/Pa |
| Microphone Max SPL | 122 dB SPL |
| Power Options | Batteries or AC/DC Power Adapter |
| Battery Type | 2 x AAA (Included) |
| Approximate Battery Life | 48 kHz/24-Bit: 6.5 Hours (Alkaline, Mono) 6 Hours (NiMH, Mono) 11 Hours (Lithium, Mono) |
| AC/DC Power Adapter | 5 VDC at 1 A (Not Included) |
| Mounting Options | Shoe Mount |
| Dimensions | 2.5 x 3.1 x 1.3″ / 64 x 79.8 x 33.3 mm |
| Weight | 4.2 oz / 120 g (without Batteries) |
Package includes

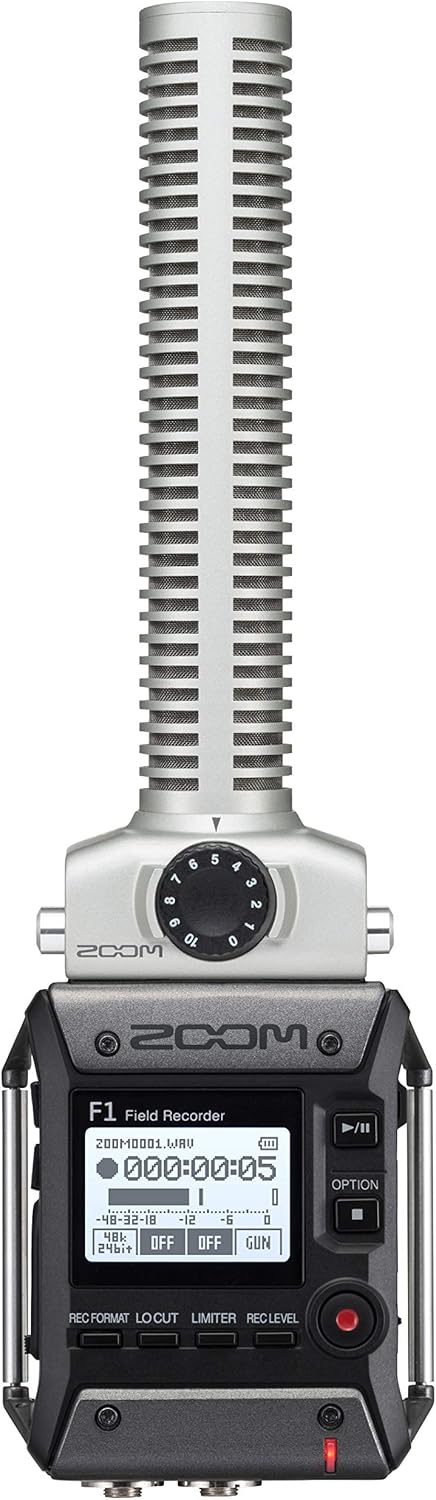

- 1 x Zoom F1-SP 2-Input / 2-Track Portable Field Recorder with Shotgun Microphone
1 x Zoom SGH-6 Shotgun Microphone Capsule for H5 and H6 Recorders
1 x Zoom SMF-1 Shockmount for F1 Field Recorder
1 x Zoom WSS-6 Foam Windscreen for SGH-6 and SSH-6 Shotgun Mic Capsules
1 x Zoom SMC-1 Stereo Mini Cable for DSLR Cameras
2 x AAA Batteries
