Description

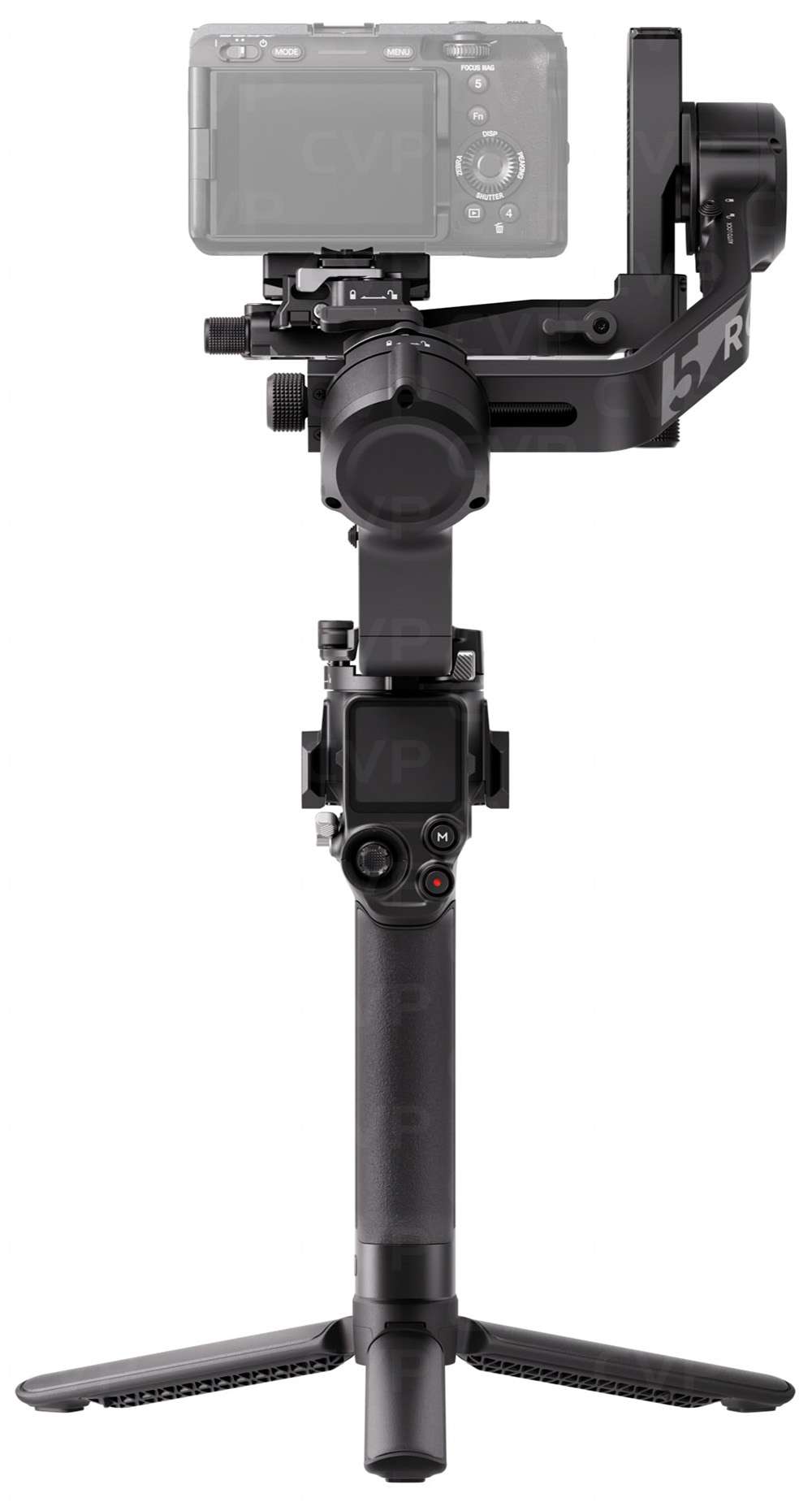

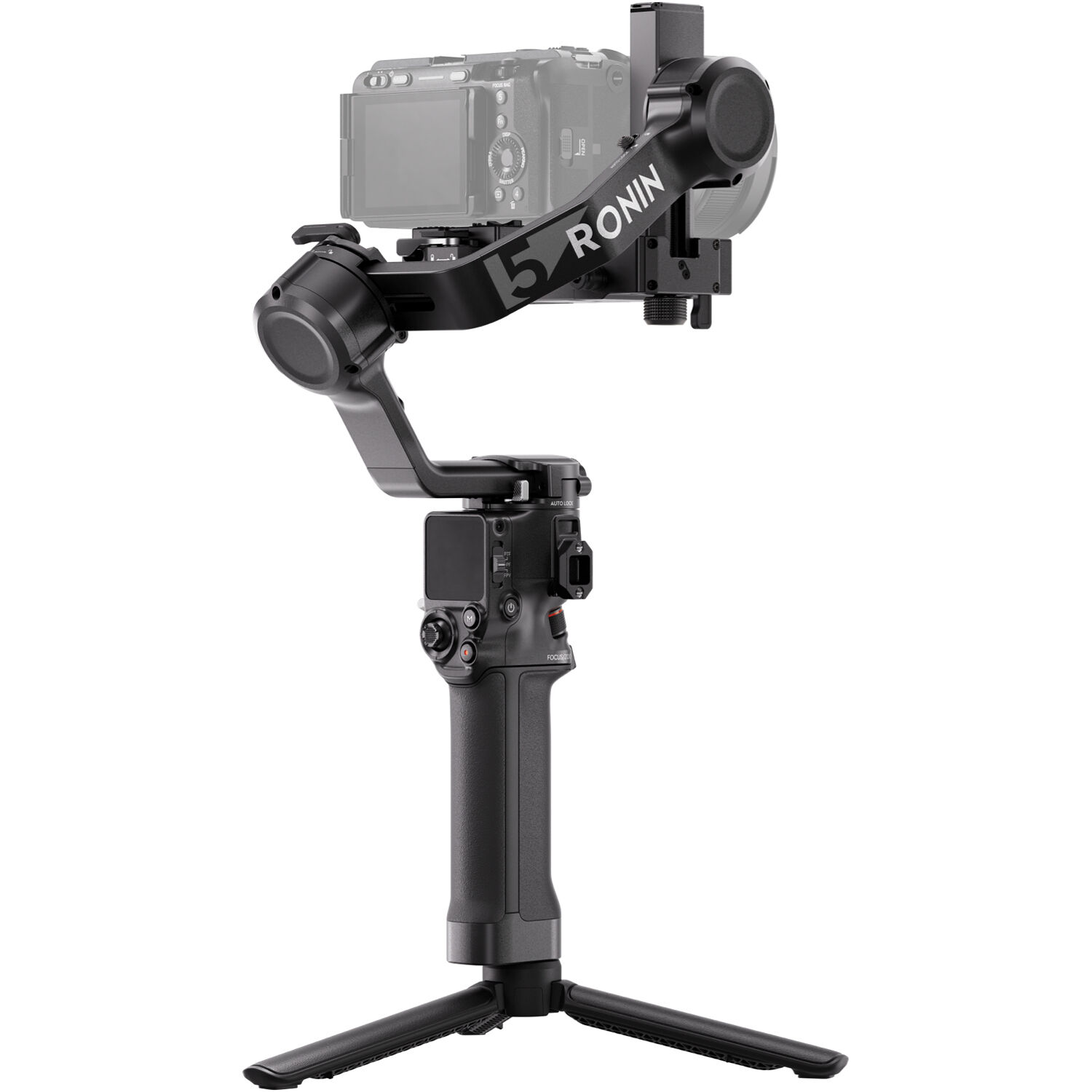

The DJI RS 5 is a lightweight, 3-axis commercial gimbal stabilizer designed for solo videographers and small crews using mirrorless or DSLR cameras. Released in early 2026, it serves as a robust upgrade to the RS series, featuring a 3kg (6.6 lbs) payload capacity, 50% higher motor torque than previous models, and enhanced intelligent subject tracking.
Specifications
| Gimbal Design | Single Handgrip |
| Load Capacity | 6.6 lb / 3 kg |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Rotation Range | Mechanical Range Yaw (Pan): 360° Roll: 335° (-95 to 240°) Pitch (Tilt): 326° (-112 to 214°) |
| Follow Speed | Pan/Tilt/Roll: 360°/s |
| Counterweight | Available, Not Included |
| Joystick Controller | No |
| Camera Control | On Compatible Models (See Full Compatibility List) |
| Camera Compatibility | Universal |
| Camera Mounting Screw | 1x 1/4″-20 Male |
| Inputs/Outputs | 1x USB-C (Power) |
| Wireless | 2.4 GHz Radio/RF / Bluetooth 5.1 |
| Mobile App Compatible | Yes: Android & iOS App Name: Ronin App |
| Battery Type | Built-In |
| Battery Runtime | 14 Hours |
| Battery Charging Time | 1 Hours |
| Operating Voltage | 7.2 VDC |
| Display Type | Fixed Touchscreen OLED |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Materials | Aluminum Alloy |
| Accessory Mounting | 1 x 1/4″-20 Female 2 x NATO Rail |
| Transmitter I/O | 2 x NATO 2 x USB-C |
| Transmission System | Bluetooth 5.1 2.4 GHz |
| Dimensions | 8.8 x 16.5 x 7.6″ / 418.8 x 223.2 x 192.2 mm 9.7 x 10.2 x 4.6″ / 258.7 x 247.4 x 115.7 mm (Folded) |
| Weight | 2.630 lb / 1.193 kg |

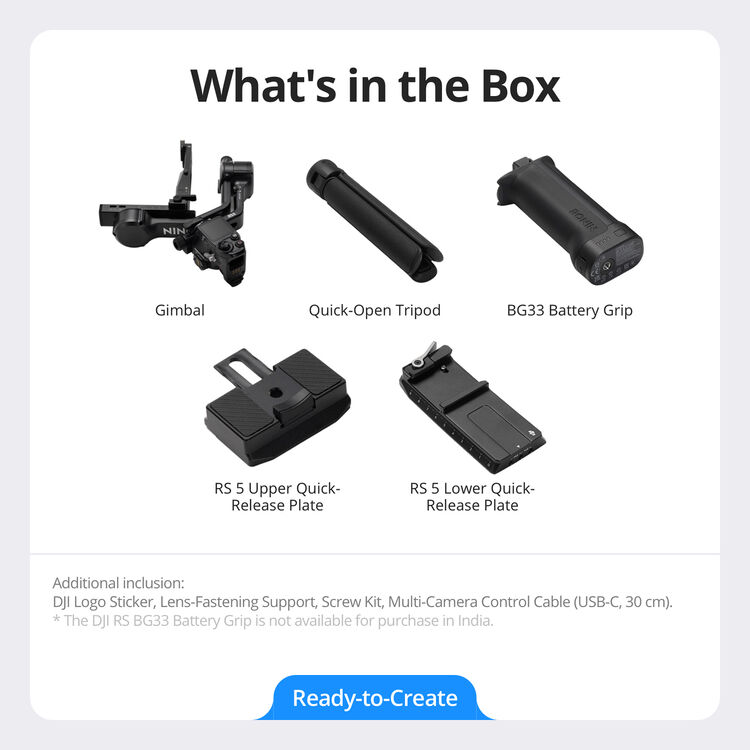

Package includes
1 x DJI RS 5 Gimbal Stabilizer
1 x Quick-Open Tripod
1 x Lens Support
1 x Screw Kit
1 x DJI Upper Quick Release Plate for RS 5/4 Pro/4
1 x DJI Lower Quick Release Plate for RS 5
1 x DJI RS BG33 Battery Grip
1 x USB-C Multicamera Control Cable (11.8″)
1 x DJI Logo Sticker
