Description
The DJI O4 Air Unit Pro is a high-end digital video transmission system designed for custom FPV (First Person View) drones. It features the O4 transmission system, a 1/1.3-inch image sensor, and dual-antenna technology to provide high-definition, low-latency, and long-range video feed, often removing the need for a separate action camera.
Specifications
| Camera Sensor | 1/1.3-inch CMOS sensor |
| Video Recording | 4K/60fps (4:3), 4K/120fps (16:9), 2.7K/120fps, 1080p/120fps |
| Transmission System | DJI O4 (2T2R), up to 15km range |
| Latency | ~15 ms (Race Mode), ~20 ms with Goggles 3, <35 ms with Goggles 2/Integra |
| Field of View (FOV) | 155° |
| Storage | 4GB Internal + microSD support (up to 512GB) |
| Input Voltage | 7.4-26.4 V |
| Compatibility | DJI Goggles 3, Goggles N3, Goggles 2, Goggles Integra, FPV Remote Controller 3/2 |
| Key Features | Pro Camera: 1/1.3-inch sensor allows superior low-light performance and wider dynamic range compared to the standard O4 Air Unit’s 1/2-inch sensor. Race Mode: Delivers 1080p/100fps live feed with ultra-low latency, optimized for racing scenarios. Mounting: Uses standard 20x20mm or 25.5×25.5mm mounting, making it versatile for various DIY frames. Colour Profiles: Supports 10-bit D-Log M for professional colour grading. |
| Dimensions | VTX: 33.5×33.5×13 mm; Camera: 25.55×20×23.30 mm |
| Weight | ~32g (including camera) |

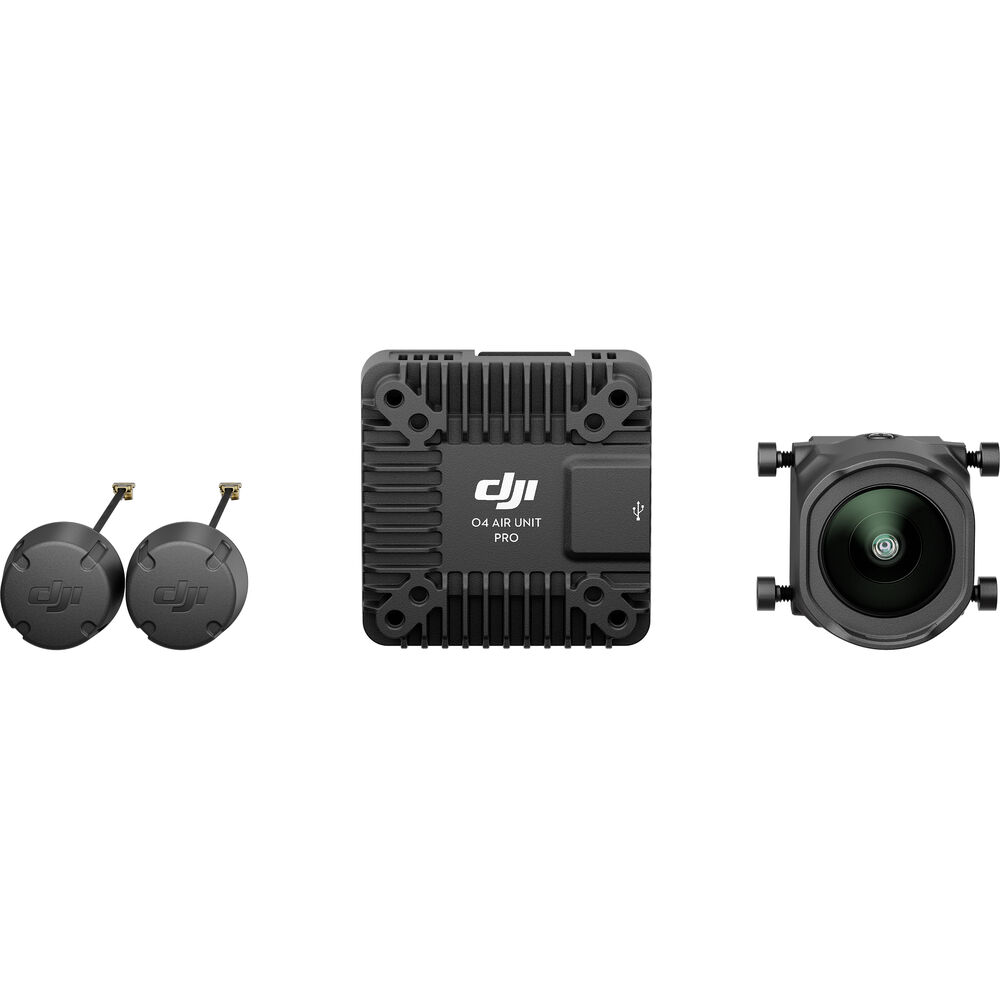

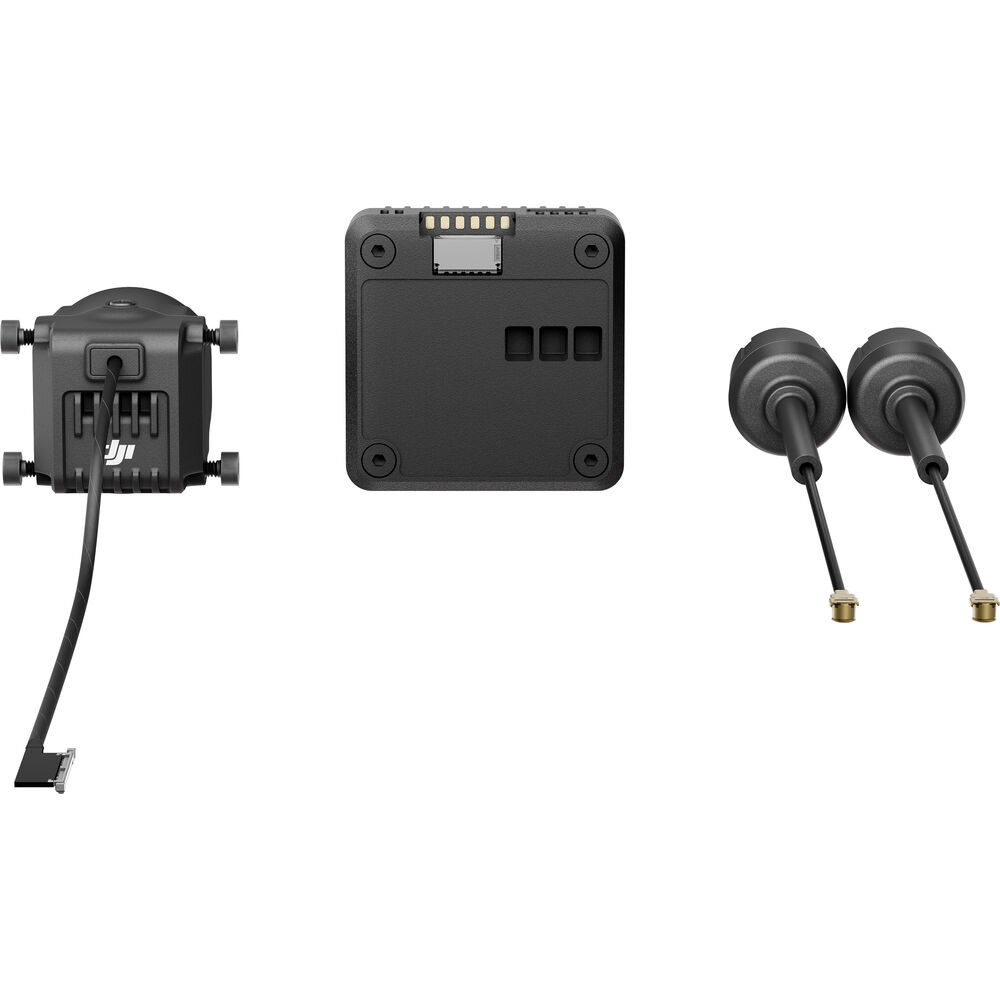

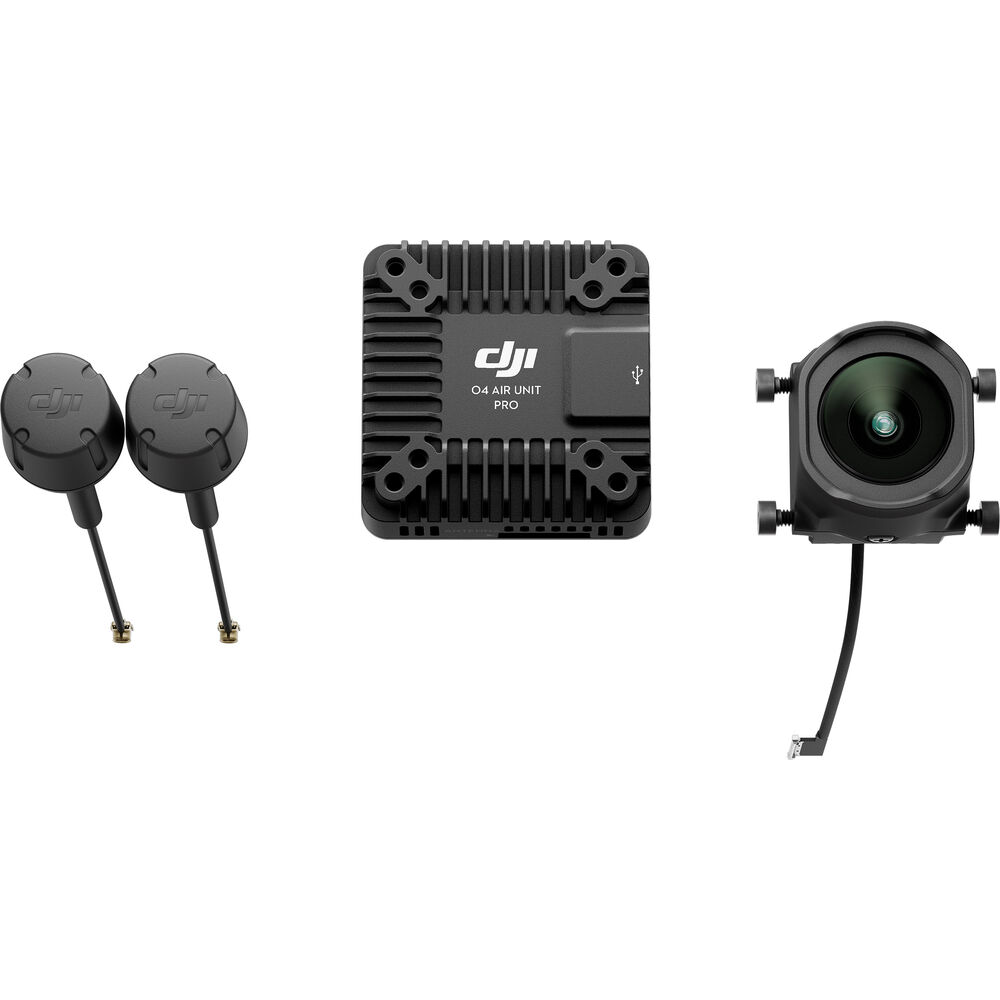

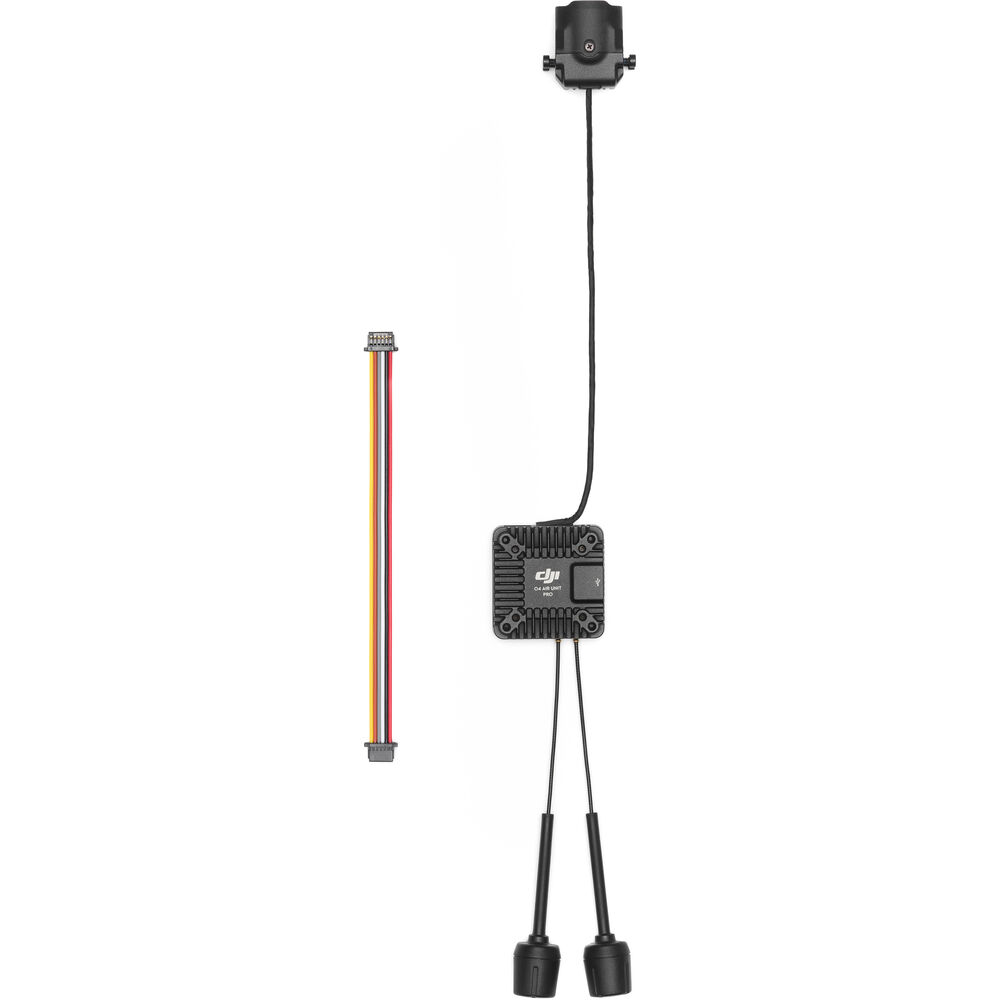

Package Includes
- 1 x DJI O4 Air Unit Pro Camera Module
1 x DJI O4 Air Unit Pro Transmission Module (VTX)
2 x DJI O4 Air Unit Pro Antennas
1 x 3-in-1 Cable
1 x Screws & Mounting Accessories
